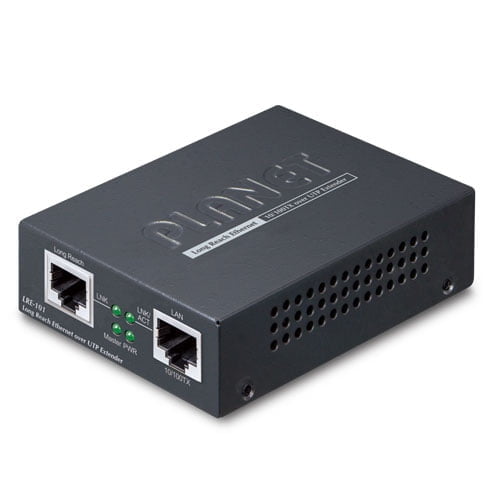

1-Port 10/100TX over UTP Long Reach Ethernet Extender LRE-101 496.38 lei (TVA inclus)
Back to products
4-Port Ethernet over VDSL2 Bridge (Profile 30a) VC-234 562.57 lei (TVA inclus)
PLANET

Imagine cu titlu de prezentare

4 persoane au vazut acest produs!
Comparați
Adaugă la lista de favorite

1-Port 10/100/1000T Ethernet to VDSL2 Converter -30a profile w/ G.vectoring, RJ11 VC-231G

SKU: VC-231G

1-Port 10/100/1000T Ethernet to VDSL2 Converter -30a profile w/ G.vectoring, RJ11

628.75 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Disponibil stoc furnizor (livrare estimata 14 zile)

💡 Discounturi disponibile pentru categoria PLANET:
  • Comenzi peste 2500.00 lei → 3% reducere
  • Comenzi peste 5000.00 lei → 5% reducere
  • Comenzi peste 10000.00 lei → 10% reducere
Pune o intrebare
  • Ridicare din depozit Bucuresti

Gratuit

  • Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Hardware Specifications
Hardware Version 2
LAN Ports 1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
VDSL Port 1 VDSL2 RJ11 female phone jack
Twisted-pair telephone wires (AWG-24 or better) up to 1.4km
DIP Switch & Functionality 4-position DIP switch
　CO or CPE mode selectable
　Selectable G.INP and interleaved mode
　Selectable target Band plan
　Selectable target SNR mode
Phone Port Additional splitter for POTS connection
Dimensions (W x D x H) 94 x 70.3 x 26.2 mm
Weight 196g
Power Requirements DC 5V, 2A external power
LED Indicators 1 x power： Green
1 x 10/100/1000BASE-T LNK/ACT： Green
1 x VDSL： Green
1 x CO： Green
1 x CPE： Green
Housing Metal
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 1K entries
Maximum Packet Size 1522bytes
Standards Conformance
VDSL Compliance VDSL-DMT
　ITU-T G.993.1 VDSL
　ITU-T G.997.1
　ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support)
　ITU-T G.993.5 G.vectoring
　ITU-T G.998
　G.INP
ADSL Compliance Capable of ADSL2/2+ standard
　ITU G.992.3 G.dmt.bis
　ITU G.992.5 G.dmt.bisplus
Data Rate: Up to 24Mbps
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.1p Class of Service
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support)
ITU-T G.993.5 G.Vectoring & G.INP
ITU-T G.998
Regulatory Compliance FCC Part 15 Class A, CE
Environment
Temperature Operating: 0~50 degrees C
Storage: -10~70 degrees C
Humidity Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
Performance
Performance* (Downstream/Upstream)
Interleave, Asym, 8dB Interleave, Asym, 12dB
200M —-> 260Mbps/56Mbps
400M —-> 180Mbps/53Mbps
600M —-> 111Mbps/48Mbps
800M —-> 68Mbps/39Mbps
1000M –> 53Mbps/18Mbps
1200M–> 42Mbps/8Mbps
1400M –> 24Mbps/4Mbps		 200M —-> 267Mbps/57Mbp
400M —->161Mbps/49Mbps
600M —->93Mbps/46Mbps
800M —-> 56Mbps/33Mbps
1000M –> 47Mbps/14Mbps
1200M–> 34Mbps/8Mbps
1400M –> 30Mbps/6Mbps
Interleave, Sym, 8dB Interleave, Sym, 12dB
200M —->175Mbps/180Mbps
400M —-> 109Mbps/130Mbps
600M —-> 75Mbps/93Mbps
800M —-> 50Mbps/65Mbps
1000M –> 37Mbps/33Mbps
1200M–> 26Mbps/22Mbps
1400M –> 20Mbps/13Mbps		 200M —-> 165Mbps/172Mbp
400M —-> 107Mbps/115Mbps
600M —-> 65Mbps/82Mbps
800M —-> 43Mbps/55Mbps
1000M –> 31Mbps/29Mbps
1200M–> 21Mbps/16Mbps
1400M –> 12Mbps/8Mbps
G.INP, Asym, 8dB G.INP, Asym, 12dB
200M —->316Mbps/60Mbps
400M —-> 185Mbps/56Mbps
600M —-> 110Mbps/51Mbps
800M —-> 68Mbps/38Mbps
1000M –> 51Mbps/18Mbps
1200M–> 39Mbps/10Mbps
1400M –> 37Mbps/6Mbps		 200M —-> 291Mbps/60Mbp
400M —-> 161Mbps/51Mbps
600M —-> 91Mbps/44Mbps
800M —-> 55Mbps/34Mbps
1000M –> 47Mbps/15Mbps
1200M–> 35Mbps/8Mbps
1400M –> 32Mbps/2Mbps
G.INP, Sym, 8dB G.INP, Sym, 12dB
200M —->187Mbps/190Mbps
400M —-> 108Mbps/134Mbps
600M —-> 74Mbps/95Mbps
800M —-> 50Mbps/66Mbps
1000M –> 34Mbps/35Mbps
1200M–> 24Mbps/22Mbps
1400M –> 21Mbps/13Mbps		 200M —-> 174Mbps/184Mbp
400M —-> 99Mbps/119Mbps
600M —-> 63Mbps/84Mbps
800M —-> 40Mbps/55Mbps
1000M –> 30Mbps/30Mbps
1200M–> 22Mbps/18Mbps
1400M –> 20Mbps/10Mbps

＊The performance data above is for reference only. The actual data rate will vary on the quality of the copper wire and environmental factors
Ordering Information

VC-231G

 1-Port 10/100/1000T Ethernet to VDSL2 Converter (35b profile w/ G.vector)

Specificatii

Detalii

Brand

PLANET
Subcategorie

Media convertor VDSL2
Software

Fara management
Tip echipament

OFFICE
Numar Porturi RJ45

1 x 10/100Mbps
Poe

NON POE
Numar Porturi RJ11

1 x VDSL2
