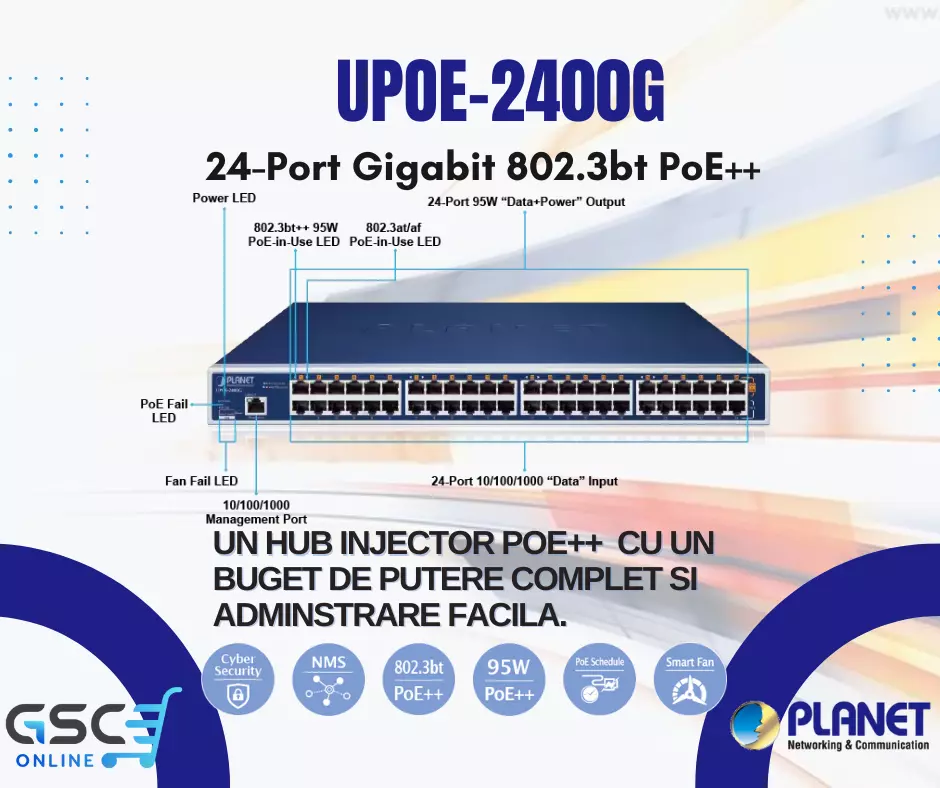

24-Port Gigabit 802.3bt PoE++ Managed Injector Hub (800 watts) UPOE-2400G

Name: 24-Port Gigabit 802.3bt PoE++ Managed Injector Hub (800 watts) UPOE-2400G
Brand: PLANET
SKU: UPOE-2400G
Availability: BackOrder

SKU: UPOE-2400G

24-Port Gigabit 95W 802.3bt PoE++ Managed Injector Hub (800W PoE Budget, IPv4/IPv6 HTTP/HTTPs Management, SNMPv3, CloudViewer app, MQTT and cybersecurity)

4947.27 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Pune o intrebare

Ridicare din depozit Bucuresti

Gratuit

Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Hardware
Interface	Management Port：1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX “Data”Input Ports：24 x RJ45 “Data + Power” Output Ports：24 x RJ45
Data Rate	10/100/1000Mbps
Power Requirements	100-240V AC, 50/60 Hz, 15A
Power Consumption	968 watts/3302 BTU
Ventilation	Smart Fan x 3
Dimensions (W x D x H)	444 x 301 x 44mm
Weight	5.4kg
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
LED	System: SYS PWR x 1 (Green) PoE Failure x 1 (Red) Fan Failure x 2 (Red) Management port x 1: LNK/ACT (Green), Per PoE Port: 802.3bt/UPoE PoE-in-use x 1 (Green) 802.3at/af PoE-in-use x1 (Amber)
Network Cable	10BASE-T: 4-pair UTP Cat5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m)
Power over Ethernet
PoE Standard	802.3bt PoE++ PSE Backward compatible with IEEE 802.3at PoE PSE
PoE Power Supply Mode	802.3bt End-span Mid-span
PoE Power Output	Per port 54V DC 　802.3bt mode: maximum 95 watts 　End-span mode: maximum 36 watts 　Mid-span mode: maximum 36 watts
Power Pin Assignment	802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-)
PoE PD Type	Standard Legacy Force
PoE Power Budget	800 watts
Number of 95W 802.3bt Type-4 PDs	8
Number of 60W 802.3bt Type-3 PDs	13
Number of 802.3at PDs	22
PoE Management	Power limit by consumption and classification PoE function enable/disable Per port PoE function enable/disable Per port PoE power schedule Power feeding priority PD alive check PD classification detection Current per port usage and status Total power consumption
Security
Firewall	SPI Firewall Protection
Filtering	MAC Filtering
Certificates	System CA Certificate for HTTPS
Management Functions
Management Interface	HTTP/HTTPs Web user interface
Secure Management Interface	TLSv1.2, TLSv1.3
Management Feature	IPv4 and IPv6 dual stack management Web interface for remote management PLANET DDNS and Easy DDNS Supports Network Time Protocol (NTP) System Maintenance 　Firmware upload via HTTP 　Configuration upload/download via HTTP 　Reboot button for system reboot 　Reset button for system reset to factory default PLANET Smart Discovery utility PLANET NMS system and CloudViewer for deployment management Scheduled System Power RebootingNetwork Diagnostic 　ICMPv6/ICMPv4 Remote Ping 　Trace Route
SNMP Management	SNMP v1, v2c and v3 for system status monitoring SNMP trap for alarm notification of events
Event Management	Local system event log Remote syslog
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus RFC 768: UDP RFC 791: IP RFC 2068 HTTP RFC 1157: SNMP v1 RFC 1902: SNMP v2c RFC 2273: SNMPv3 RFC 5424: Syslog
Environments
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing)
