Imagine cu titlu de prezentare

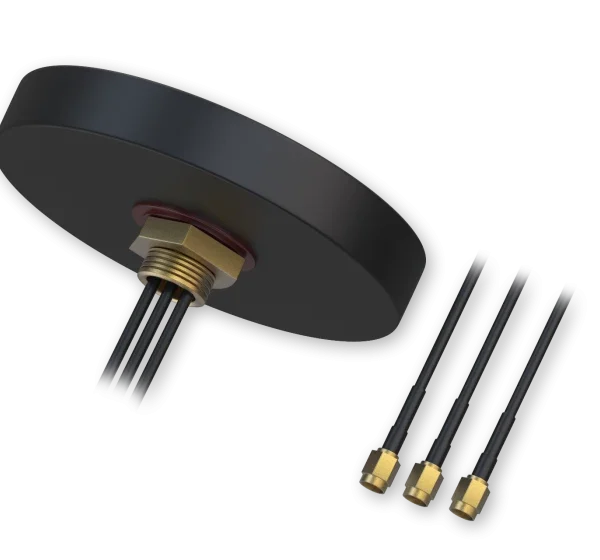

COMBO MIMO MOBILE/GNSS/WIFI ROOF SMA ANTENNA
COMBO MIMO Mobile/GNSS/WIFI ROOF SMA Antenna
231.86 lei (TVA inclus)
În stoc (comanda rapida)
În stoc (comanda rapida)
-
Ridicare din depozit Bucuresti
Gratuit
-
Livrare prin curier
Gratuit la comenzi peste 2500 de RON
Plata securizată:
Descriere
MECHANICAL/ENVIRONMENTAL
Mounting method
Screw
Radome ingress protection rating
IP65?(exclude cable outlet)
Radome material
ABS
Housing dimensions
? 110 x 55 mm
Cable
5x RG174, 3000 mm
Operating temperature
– 40 ~ +85 ?C
Weight
535 ? 10 g
UV resistance
?
RoHS Compliant
?
GNSS ANTENNA
Frequency range
1575.42 ??1610 MHz
Polarization
RHCP
LNA gain
28 ? 2 dB
LNA noise figure
?1.5 dB
V.S.W.R
Impedance
50 ?
Supply voltage
3 ??5 VDC
Current consumption
< 15 mA Connector type and count SMA Male LTE MIMO ANTENNA Frequency range 698 ??960, 1710 ??2690 MHz Polarization Linear Gain 3.0 dBi V.S.W.R < 3.0 Impedance 50 ? Connector type and count 2x SMA Male WIFI ANTENNA Frequency range 2400 ??2483.5, 4900 ??5825 MHz Polarization? Linear Gain 2.0 dBi V.S.W.R < 2.5 Impedance 50 ? Connector type and count 2x RP-SMA Male
Specificatii
Detalii
| Brand |
TELTONIKA |
|---|---|
| Software |
Fara management |
| Tip echipament |
INDUSTRIAL |
| Subcategorie |
Antene |
