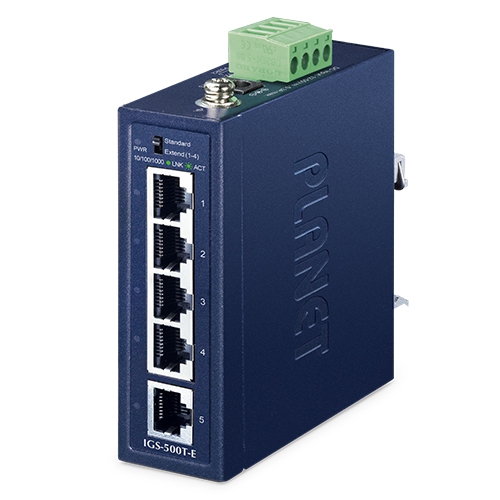

IP40 Compact size 5-Port 10/100/1000T Gigabit Ethernet Switch (-40~75 degrees C, redundant power input on dual 12~55V DC terminal block and one DC jack, 250m Extend mode) 372.28 lei (TVA inclus)
PLANET

Imagine cu titlu de prezentare

4 persoane au vazut acest produs!
Comparați
Adaugă la lista de favorite

IP30 Compact size Industrial 8-Port 10/100/1000T PROFINET Switch (-40~75 degrees C, dual 9~48V DC/24V AC, Low power consumption, Compliant with PROFINET Conformance Class A)

SKU: IGS-800T-PN

IP30 Compact size Industrial 8-Port 10/100/1000T PROFINET Switch

711.48 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Disponibil stoc furnizor (livrare estimata 14 zile)

💡 Discounturi disponibile pentru categoria PLANET:
  • Comenzi peste 2500.00 lei → 3% reducere
  • Comenzi peste 5000.00 lei → 5% reducere
  • Comenzi peste 10000.00 lei → 10% reducere
Pune o intrebare
  • Ridicare din depozit Bucuresti

Gratuit

  • Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Hardware Specifications
Copper Ports 8 x 10/100/1000BASET RJ45 TP auto-MDI/MDI-X, auto negotiation
Connector Removable 4-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for Power 2
ESD Protection 6KV
EFT Protection 6KV
Power Requirements 9~48V DC redundant power with polarity reverse protection function,
24V AC power support
Power Consumption / Dissipation System on: Max. 0.48 watts/1.6BTU
Ethernet Full Loading: Max. 2.88 watts/9.8BTU
Installation DIN-rail kit and wall-mount ear
Enclosure IP30 metal case
Dimensions (W x D x H) 41 x 70 x 115 mm
Weight 305g
LED 2 x LED for system and power:
　Green:　DC Power 1
　Green:　DC Power 2
2 x LED for each copper port:
　Green:　1000Mbps LNK/ACT
　Amber:　10/100Mbps LNK/ACT
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 4K entries
Buffer Memory 4M bits on-chip buffer memory
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Switch Fabric 16Gbps
Throughput (packet per second) 11.9Mpps@64bytes
Jumbo Frame 9Kbytes
Network Cables 10/100/1000BASE-T
Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters)
EIA/TIA-568 100-ohm STP (max. 100 meters)
PROFINET Support Conformance Class A (CC-A), PTCP filter, QoS prioritization
Standards Conformance
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of Service
PROFINET protocol
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
PROFINET Conformance Class Conformance-Class A
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90%, Storage: 5~90% (non-condensing)

Specificatii

Detalii

Brand

PLANET
Subcategorie

Switch de retea
Software

Fara management
Tip echipament

INDUSTRIAL
Poe

NON POE
Numar Porturi RJ45

8 x 10/100/1000Mbps
