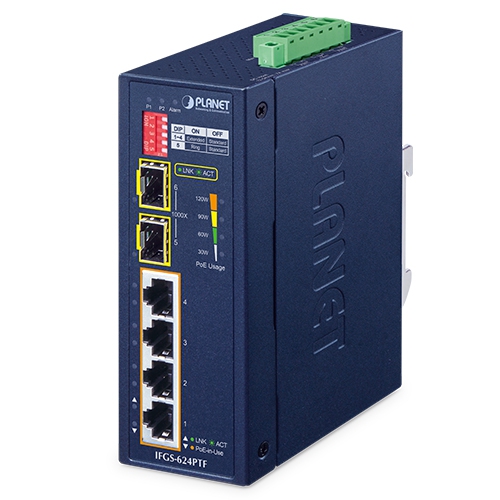

IP40 Industrial 4-Port 10/100BASE-TX 802.3at PoE + 2-Port 1000BASE-X SFP Ring Ethernet Switch IFGS-624PTF 1174.76 lei (TVA inclus)
PLANET

Imagine cu titlu de prezentare

5 persoane au vazut acest produs!
Comparați
Adaugă la lista de favorite

IP30 Industrial 8-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Ethernet Switch IGS-1000-8UP4X

SKU: IGS-1000-8UP4X

IP30 Industrial 8-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Ethernet Switch (360W PoE budget, PoE Usage LED, -40~75 degrees C, dual 48~54V DC, supports 1G/2.5G/10G SFP transceivers)

2366.08 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Disponibil stoc furnizor (livrare estimata 14 zile)

💡 Discounturi disponibile pentru categoria PLANET:
  • Comenzi peste 2500.00 lei → 3% reducere
  • Comenzi peste 5000.00 lei → 5% reducere
  • Comenzi peste 10000.00 lei → 10% reducere
Pune o intrebare
  • Ridicare din depozit Bucuresti

Gratuit

  • Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Hardware Specifications
Copper Ports 8 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
PoE Injector Ports 8 ports with 802.3bt PoE++ injector function (Ports1 to 8)
SFP Slots 4 10GBASE-X SFP+ interfaces(Ports 9 to 12)
Backward compatible with 1000BASE-X SFP and 2500BASE-X SFP
Connector Removable 6-pin terminal block
　Pin 1/2 for Power 1
　Pin 3/4 for fault alarm
　Pin 5/6 for Power 2
Power Requirements 48~54V DC, 8A max.
Redundant power with reverse polarity protection function
Power Consumption Max. 8.69 watts/29.63BTU (System on)
Max. 387.2 watts/1320BTU (Ethernet + PoE Full Loading)
Dimensions (W x D x H) 76 x 135 x 152 mm
Weight 1352g
Enclosure IP30 aluminum case
Installation DIN-rail kit and wall-mount kit
ESD Protection 6KV
LED Indicators System:
　P1, P2 (Green), Alarm (Red)
10/100/1000BASE-T RJ45 Ports (Ports 1 to 8):
　1000Mbps LNK/ACT (Green)
　10/100Mbps LNK/ACT (Amber)
　802.3bt PoE-in-Use (Green)
　802.3at PoE-in-Use (Amber)
1G/2.5G/10Gbps SFP+ Ports (Ports 9 to 12):
　1G/2.5G LNK/ACT (Green)
　10G LNK/ACT (Amber)
PoE Usage:
　90W, 180W, 270W, 360W (Amber)
Switch Specifications
Switch Architecture Store-and-Forward
Switch Fabric 96Gbps
Throughput (packet per second) 71.43Mpps@64bytes
Address Table 16K entries
Buffer Memory 12M bits on-chip buffer memory
Jumbo Frame 12Kbytes
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Power over Ethernet
PoE Standard IEEE 802.3bt PoE++ PSE
IEEE 802.3at PoE+ PSE
PoE Power Supply Type 802.3bt, End-span + Mid-span
PoE Power Output Ports 1 to 8: 95 watts max.
Power Pin Assignment Pair 1 End-span: 1/2(-), 3/6(+)
Pair 2 Mid-span: 4/5(+), 7/8(-)
802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Power Budget (max.) Single power input: 240W maximum
Dual power input: 360W maximum
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3bt Power over Ethernet Plus Plus PSE
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
IEEE 802.1p Class of Service
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
Ordering Information

IGS-1000-8UP4X

 Industrial 8-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Ethernet Switch
Accessories

PWR-240-48

 48V, 240W DIN-rail Power Supply (NDR-240-48, adjustable 48-56V DC Output)

PWR-480-48

 48V, 480W DIN-rail Power Supply (NDR-480-48, adjustable 48-56V DC Output)

Specificatii

Detalii

Brand

PLANET
Subcategorie

Switch de retea
Software

Fara management
Poe

POE
Tip echipament

INDUSTRIAL
Numar Porturi RJ45

8 x 10/100/1000Mbps
Numar porturi SFP+

4 x 10G
