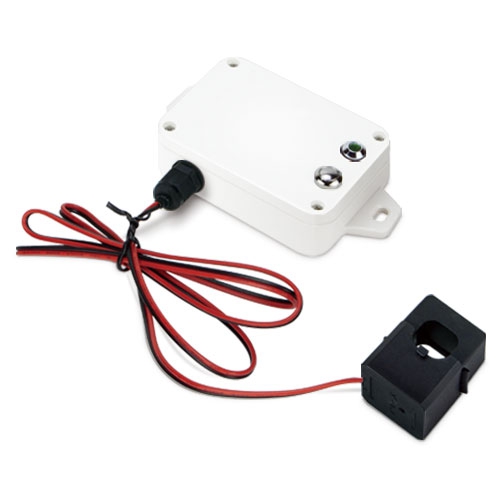

IP53 LoRaWAN 1-phase Current Meter (150A Clamp-On CT, US915 Sub 1G) LS200-CM-915M

Name: IP53 LoRaWAN 1-phase Current Meter (150A Clamp-On CT, US915 Sub 1G) LS200-CM-915M
Brand: PLANET
SKU: LS200-CM-915M
Availability: BackOrder

SKU: LS200-CM-915M

IP53 LoRaWAN 1-phase Current Meter (150A Clamp-On CT, US915 Sub 1G)

860.39 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Pune o intrebare

Ridicare din depozit Bucuresti

Gratuit

Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Wireless Transmission
Technology	LoRaWAN
Frequency	LS200-CM-EU868 863–870 MHz LS200-CM-US915 902–928 MHz
TX Power	LS200-CM-EU868 EU868 16dbm IN865 20dbm (optional) LS200-CM-US915 US915 20dbm AS923 16dbm (optional) AU915 20dbm (optional) KR920 14dbm (optional)
Rx Sensitivity	-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps) -121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work Mode	OTAA/ABP Class A
Data Interfaces
Power Supply	2 x 3.6V ER14505 AA battery in parallel(Battery not included)
Operating Voltage	DC 3.1V～3.65V
Battery Life Time	5 years (Conditions: ambient temperature 25 °C, 15 min report once, TX power = 20dBm, LoRa spreading factor SF = 10)
Standby Current	25uA
Wake-up Current (Typical value)	7mA
Low Battery Threshold	3.2V
Physical Characteristics
Dimensions (L x W x H)	112 x 88.19 x 32 mm
Weight	141g
Sensor Dimensions	33 x 28.5 x 43.5mm
Sensor Weight	70.1g
Ingress Protection	IP65
Sensor Measurement Info	Current 　Measurement Range: 1A to 150A 　Measurement Accuracy: <±1% 　Current Resolution: 1mA
Operating Temperature	-20°C to 55°C
Relative Humidity	<90% RH (non condensing)
Storage Temperature	-40 °C ~ 85 °C
Standards Conformance
Regulatory Compliance	CE RED, FCC PART 15B

Ordering Information
LS200-CM-EU868	IP53 LoRaWAN 1-phase Current Meter (150A Clamp-On CT, EU868 Sub 1G)
LS200-CM-US915	IP53 LoRaWAN 1-phase Current Meter (150A Clamp-On CT, US915 Sub 1G)
