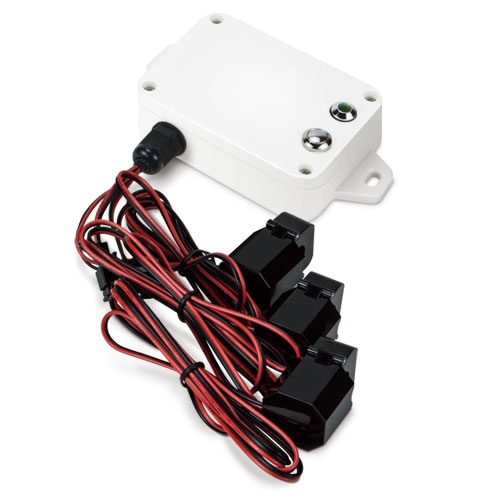

IP53 LoRaWAN 3-Phase Current Meter (3 x 75A Clamp-On CT, US915 Sub 1G, 2 x 3.6V ER14505 AA batteries required) LS200-CM3-915M
IP53 LoRaWAN 3-Phase Current Meter (3 x 75A Clamp-On CT, US915 Sub 1G, 2 x 3.6V ER14505 AA batteries required)
1232.68 lei (TVA inclus)
Disponibil stoc furnizor (livrare estimata 14 zile)
Disponibil stoc furnizor (livrare estimata 14 zile)
Pune o intrebare-
Ridicare din depozit Bucuresti
Gratuit
-
Livrare prin curier
Gratuit la comenzi peste 2500 de RON
Plata securizată:
Descriere
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN |
| Frequency | LS200-CM3-EU868 863–870 MHz LS200-CM3-US915 |
| TX Power | LS200-CM3-EU868 EU868 16dbm IN865 20dbm (optional) LS200-CM3-US915 |
| Rx Sensitivity | -136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps) -121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps) |
| Work Mode | OTAA/ABP Class A |
| Data Interfaces | |
| Power Supply | 2x 3.6V ER14505 AA battery in parallel (Battery not included) |
| Operating Voltage | DC 3.1V～3.65V |
| Battery Life Time | 5 years (25C, 15-minute reports, TxPower=20dBm, SF10) |
| Standby Current | 25uA |
| Wake-up Current (Typical value) | 127mA |
| Low Battery Threshold | 3.2V |
| Physical Characteristics | |
| Dimensions (L x W x H) | 112 x 88.19 x 32 mm |
| Weight | 141g |
| Sensor Dimensions (L x W x H) | 27.5 x 25 x 42.5 mm |
| Sensor Weight | 49.6 x 3g |
| Sensor Measurement Info | Current Measurement Range: 100mA to 75A Operating Temperature: -40℃ to 85℃ |
| Ingress Protection | IP53 |
| Operating Temperature | -20°C to 55°C |
| Relative Humidity | <90% RH (non condensing) |
| Storage Temperature | -40 °C ~ 85 °C |
| Standards Conformance | |
| Regulatory Compliance | CE RED, FCC PART 15B |
| Ordering Information | |
|---|---|
LS200-CM3-EU868 |
IP53 LoRaWAN 3-phase Current Meter (3 x 75A Clamp-On CT, EU868 Sub 1G) |
LS200-CM3-US915 |
IP53 LoRaWAN 3-phase Current Meter (3 x 75A Clamp-On CT, US915 Sub 1G) |
Specificatii
Detalii
| Brand |
PLANET |
|---|---|
| Subcategorie |
LoRaWAN Senzor |
| Software |
Fara management |
| Poe |
NON POE |
| Tip echipament |
OFFICE |
| Tip senzor |
Detector masurare curent |
