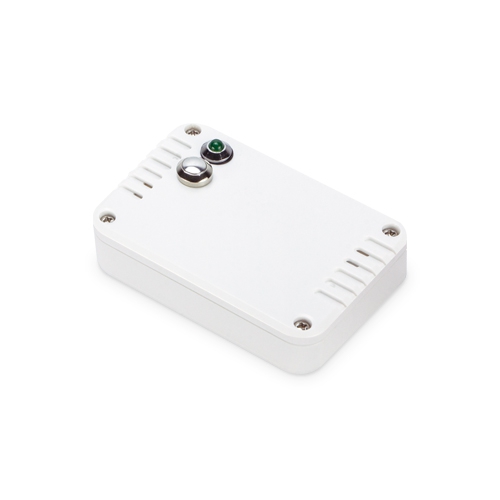

IP65 LoRaWAN TVOC Sensor (TVOC/Temperature/Humidity -20~55 degrees C, US915 Sub 1G) LS200-VOC-915M

Name: IP65 LoRaWAN TVOC Sensor (TVOC/Temperature/Humidity -20~55 degrees C, US915 Sub 1G) LS200-VOC-915M
Brand: PLANET
SKU: LS200-VOC-915M
Availability: BackOrder

SKU: LS200-VOC-915M

IP65 LoRaWAN TVOC Sensor (TVOC/Temperature/Humidity -20~55 degrees C, US915 Sub 1G)

862.27 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Ridicare din depozit Bucuresti

Gratuit

Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Wireless Transmission
Technology	LoRaWAN
Frequency	LS200-VOC-EU868 863–870 MHz LS200-VOC-US915 902–928 MHz
TX Power	LS200-VOC-EU868 EU868 16dbm IN865 20dbm (optional) LS200-VOC-US915 US915 20dbm AS923 16dbm (optional) AU915 20dbm (optional) KR920 14dbm (optional)
Rx Sensitivity	-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps) -121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work Mode	OTAA/ABP Class A
Data Interfaces
Power Supply	2x 3.6V ER14505 AA battery in parallel (Battery not included)
Operating Voltage	DC 3.1V～3.65V
Battery Life Time	2.7 years (Conditions: ambient temperature 25 °C, 15 min report once, TX power = 20dBm, LoRa spreading factor SF = 10)
Standby Current	28uA
Wake-up Current (Typical value)	0.8mA-20mA
Low Battery Threshold	3.2V
Physical Characteristics
Dimensions (L x W x H)	88 x 65 x 19 mm
Weight	113g
Sensor Measurement Info	TVOC Sensor 　Measurement Range: 0 ppb – 60000 ppb Temperature Sensor 　Measurement Range: -20°C to 55°C Humidity Sensor 　Measurement Range: 0% to 100% RH
Ingress Protection	IP65
Operating Temperature	-20°C to 55°C
Relative Humidity	<90% RH (non condensing)
Storage Temperature	-40 °C ~ 85 °C
Standards Conformance
Regulatory Compliance	CE RED, FCC PART 15B

Ordering Information
LS200-VOC-EU868	IP65 LoRaWAN TVOC Sensor (TVOC/Temperature/Humidity -20~55 degrees C, EU868 Sub 1G)
LS200-VOC-US915	IP65 LoRaWAN TVOC Sensor (TVOC/Temperature/Humidity -20~55 degrees C, US915 Sub 1G)
