Layer 3 24-Port 10G SFP+ + 2-Port 40G/100G QSFP28 Managed Switch XGS-6350-24X2C

Name: Layer 3 24-Port 10G SFP+ + 2-Port 40G/100G QSFP28 Managed Switch XGS-6350-24X2C
Brand: PLANET
SKU: XGS-6350-24X2C
Availability: BackOrder

SKU: XGS-6350-24X2C

Layer 3 24-Port 10G SFP+ + 2-Port 40G/100G QSFP28 Managed Switch with optional Redundant Power,(Hardware stacking up to 10 units, supports VRRP and ERPS Ring redundancy)

6270.95 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Pune o intrebare

Ridicare din depozit Bucuresti

Gratuit

Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Hardware Specifications
QSFP28 Slots	2 with each having native 100/40 Gigabit Ethernet and 4 10 Gigabit Ethernet ports
SFP+ Slots	24 10GBASE-SR/LR SFP+ interfaces Compatible with 1000BASE-SX/LX/BX SFP transceiver
MGMT	1 x 10/100/1000BASE-T RJ45 port
Console	1 x RJ45-to-DB9 serial port (9600, 8, N, 1)
USB	1 x USB 2.0
LED Indicator	System: 　PWR, SYS(Green) Ports: 　10G SFP+ interfaces: LNK/ACT(Green) 　40G/100G QSFP Port: LNK/ACT(Green)
Dimensions (W x D x H)	442.5 x 300.1 x 44.6 mm 1U height
Weight	5716g
Power Consumption	50.5 watts/172 BTU (maximum)
Power Requirements	AC 100~240V, 50/60Hz
Fan	4
Switching Performance
Switch Architecture	Store-and-forward
Switch Capacity	880Gbps/non-blocking
Switch Throughput	654Mpps
Address Table	132K MAC address table with auto learning function
Shared Data Buffer	4.5MB
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Jumbo Frame	9KB
Routing Table	IPv4: 16K IPv6: 8K
IPv4 Layer 3 Functions
IP Routing Protocol	RIP v1/v2 OSPFv2 BGP (Border Gateway Protocol) Static routing
Multicast Routing Protocol	PIM-DM and PIM-SM PIM-SSM
VRRP	Configure VRRP in interface VLAN： VRRP priority VRRP standby VRRP track
Routing Features	VRRP Policy routing Load balance through equal-cost routing BFD (Bidirectional Forwarding Detection) for OSPF and BGP
DHCP	DHCP client DHCP server, default route DHCP relay
IPv6 Layer 3 Functions
IP Routing Protocol	RIPng OSPFv3 BGP4+
Routing Features	Manual tunnel ISATAP tunnel 6-to-4 tunnel
IPv6 Functions	ICMPv6, DHCPv6, ACLv6, IPv6 Telnet IPv6 Neighbor Discovery Path MTU Discovery
Layer 2 Function
Port Configuration	Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Bandwidth control on each port Port loopback detect
Port Status	Display each port’s speed duplex mode, link status, flow control status and auto negotiation status
VLAN	IEEE 802.1Q tag-based VLAN, up to 4K VLAN entries IEEE 802.1ad Q-in-Q VLAN stacking/tunneling GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN IP subnet VLAN
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) BPDU protection, root protection
IPv4 IGMP Snooping	IPv4 IGMP v1/v2/v3 snooping IGMP Fast Leave IPv4 Querier mode support IGMP Filtering and IGMP Throttling IGMP Proxy reporting
IPv6 MLD Snooping	IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR)
Bandwidth Control	Ingress and Egress At least 64Kbps stream
Ring	Supports ITU-T G.8032 ERPS
Link Aggregation	IEEE 802.3ad LACP/static trunk Supports 32 groups with 8 ports per trunk group
QoS	8 priority queues on all switch ports Traffic Supervision and Traffic Shaping Scheduling for priority queues 　Weighted Round Robin (WRR) 　Strict priority (SP) 　SP+WRR Traffic classification: 　IEEE 802.1p CoS 　DSCP 　DiffServ 　Precedence 　TOS 　VLAN ID 　IP ACL 　MAC ACL 　Port ACL Policy-based ingress and egress QoS 802.1p and DSCP priority remark
Authentication	IEEE 802.1x port-based network access control AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS
Security Function
Access Control List	Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL/Port-based ACL Time-based ACL Up to 1K entries
Security	Port isolation Port security, supports IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet DHCP Snooping, DHCP Option 82 Command line authority control based on user levels
AAA	TACACS+ and IPv4/IPv6 over RADIUS
Network Access Control	IEEE 802.1x port-based network access control
Management Function
System Configuration	Console and Telnet Web browser SNMP v1, v2c
Secure Management Interfaces	SSHv2, SSLv3 TLS v1.3 and SNMPv3 Maximum 8 sessions for SSH and Telnet connection
System Management	Supports both IPv4 and IPv6 Protocols Supports the user IP security inspection for IPv4/IPv6 SNMP Supports MIB and TRAP Supports TFTP, FTP Supports IPv4/IPv6 NTP Supports RMON 1, 2, 3, 9 groups Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password Supports Change of Authorization (COA) The right configuration for users to adopt RADIUS server’s shell management Supports CLI, console, Telnet Supports Security IP safety net management function: avoid unlawful landing at non-restrictive area Supports TACACS+ Supports SPAN, RSPAN
Stacking Management	10 members max. 2 software-defined ports function as Stacking Up and Down interfaces
Event Management	Supports syslog server for IPv4 and IPv6
SNMP MIBs	RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMPv2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMPv3 notification RFC 2574 SNMPv3 VACM RFC 2674 Bridge MIB Extensions
Standard Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 RFC 5176 COA
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 10 ~ 85% (non-condensing)
Storage	Temperature: -40 ~ 80 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Ordering Information
XGS-6350-24X2C	Layer 3 24-Port 10G SFP+ + 2-Port 100G QSFP28 Managed Ethernet Switch

Accessories

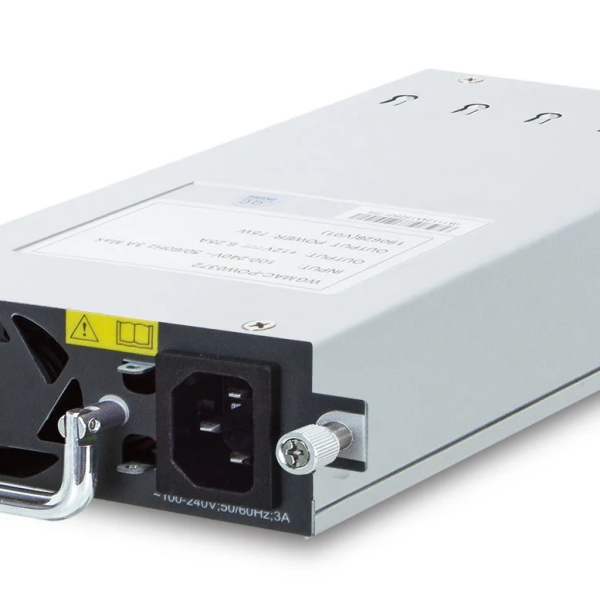

GPL-PWR75-AC	75-watt AC power supply for GPL-8000 & XGS-6350-24X4C (100V-240VAC)
GPL-PWR75-DC	75-watt DC power supply for GPL-8000 & XGS-6350-24X4C (36V~72VDC)
QSFP-100G-SR4	100GBASE-SR4 QSFP28 Fiber Transceiver (Multimode, MPO, 850nm, DDM) – 100m
QSFP-100G-LR4	100GBASE-LR4 QSFP28 Fiber Transceiver (Single mode, LC, 1310nm, DDM) – 10km
