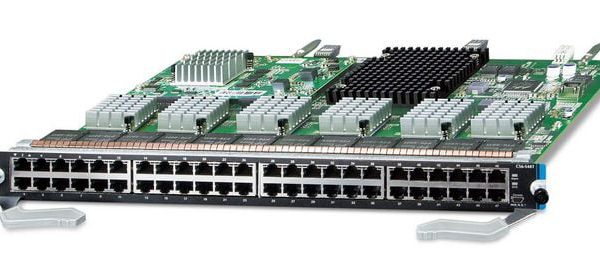

Planet 48-Port 10/100/1000BASE-T Switch Module for CS-6306R 12078.61 lei (TVA inclus)
Back to products
SLIM CAT6 Patchcords FLAT design - UTP unshielded - grey 9.63 leibucata (TVA inclus)
PLANET

Imagine cu titlu de prezentare

2 persoane au vazut acest produs!
Comparați
Adaugă la lista de favorite

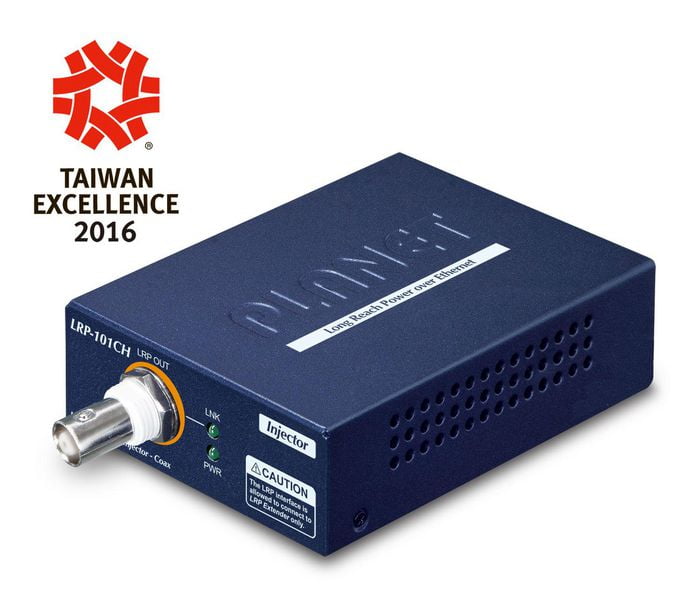

Planet 1-Port 10/100TX PoE PD + 1-Port Coax Long Reach PoE Injector

SKU: LRP-101CH

1-Port Long Reach POE over Coax Injector, -20 to 70 Degree C, up to 1KM

678.39 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Disponibil stoc furnizor (livrare estimata 14 zile)

💡 Discounturi disponibile pentru categoria PLANET:
  • Comenzi peste 2500.00 lei → 3% reducere
  • Comenzi peste 5000.00 lei → 5% reducere
  • Comenzi peste 10000.00 lei → 10% reducere
Pune o intrebare
  • Ridicare din depozit Bucuresti

Gratuit

  • Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Hardware Specifications
Ethernet Interface LRP-101CH
■ Copper: 10/100BASE-TX RJ45, auto-negotiation / auto-MDI/MDI-X
■ Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device)
■ PoE Input: Supports both Mid-span and End-span PSE Input Range: 48~56V DC
■ Data Rate: 100/100Mbps
■ Cabling: Cat5e or above
■ Maximum Distance: 100 meters
■ Maximum Frame Size: 1522 bytes

LRP-101CE
■ Copper: 10/100BASE-TX RJ45, Auto-negotiation / auto-MDI/MDI-X
■ Power over Ethernet Standard: IEEE 802.3at/af PoE PSE
　(Power Source Equipment)
■ PoE Output: 56V DC, 600mA max.
■ PoE Budget: Up to 25 watts
■ PoE Mode: End-span, RJ45 Pin 1/2(+), 3/6(-)
■ Data Rate: 100/100Mbps
■ Cabling: Cat5e or above
■ Maximum Distance: 100 meters
■ Maximum Frame Size: 1522 bytes
Long Reach PoE Interface LRP-101CH
■ Connectivity: 1 x BNC female connector Long Reach PoE over coaxial PSE
　(Power Source Equipment)
■ Power Output: 41~56V DC
■ Power Pin Assignment: 
　BNC center pole: DC+
BNC shield: DC-
■ Cabling:
　Coaxial cable: 75 ohm
　RG-6/U cable, less than 12Ω/1,000ft.
　RG-59/U cable, less than 30Ω/1,000ft.
■ Maximum Distance:
　Max. 200m with PoE+ output (656ft.)
　Max. 600m with PoE output (1,968ft.)
　Max. 1200m without PoE output (3,937ft.)
■ Long Reach Ethernet Standard: IEEE 1901
■ Modulation Type: Wavelet-OFDM
■ Security: 128-bit AES encryption
■ Frequency Band: 2 ~ 28 MHz
■ Encryption: AES 128-bit
■ LRP Compatibility: LRP-101CE, 1-Port LRP Extender

LRP-101CE
■ Connectivity: 1 x BNC female Long Reach PoE over coaxial PD
　(Powered Device)
■ Power Input: 37~56V DC
■ Power Pin Assignment: 
　BNC center pole: DC+
　BNC shield: DC-
■ Cabling:
　Coaxial cable: 75 ohm
　RG-6/U cable, less than 12Ω/1,000ft.
　RG-59/U cable, less than 30Ω/1,000ft.
■ Maximum Distance:
　Max. 200m with PoE+ output (656ft.)
　Max. 600m with PoE output (1,968ft.)
　Max. 1200m without PoE output (3,937ft.)
■ Long Reach Ethernet Standard: IEEE 1901
■ Modulation Type: Wavelet-OFDM
■ Security: 128-bit AES encryption
■ Frequency Band: 2 ~ 28 MHz
■ Encryption: AES 128-bit
■ LRP Compatibility: With power over coaxial input
　LRP-101CH, 1-Port LRP Injector
　LRP-822CS, 8-Port LRP over Coax Switch
　LRP-1622CS, 16-Port LRP over Coax Switch

Performance**

Distance
Data Rate*
(Upload / Download)
LRP-101CE 802.3af/at PoE Output Capability**
LRP-101CH
with 56V DC in
LRP-101CH
with 30W PoE+ in
200m
93 / 93Mbps
29W
16W
400m
93 / 93Mbps
22W
14W
600m
87 / 91Mbps
13W
10W
800m
75 / 83Mbps
10W
8W
1000m
55 / 73Mbps
8W
7W
LED Indicators LRP-101CH
4 x LEDs
■ PWR
■ LRP LNK
■ PoE IN
■ LNK/ACT

LRP-101CE
4 x LEDs
■ PWR
■ LRP LNK
■ PoE-in-use
■ LNK/ACT
ESD Protection 4KV DC
EFT Protection LRP-101CH
■ 2KV

LRP-101CE
■ –
Enclosure Metal case
Installation Wall mount or DIN rail with optional kit
Dimensions (W x D x H) 94 x 70.3 x 26.2 mm
Weight LRP-101CH
■ 200g

LRP-101CE
■ 375g
Power Requirements LRP-101CH
■ RJ45 PoE Input: 802.3at/af 48~56V DC
■ DC Input: 48~56V DC

LRP-101CE
■ BNC Power over Coaxial Input: 44~56V DC
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet (802.3at Type 2)
Regulation Compliance FCC Part 15 Class A, CE
Environment
Temperature Operating: -20~70 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
Note
Note *1.Upload: LRP-101CE to LRP-101CH,data stream.
　Download: LRP-101CH to LRP-101CE,data stream.
2.As there are various resistance values in the category of RG-59/U or
　RG-6/U cable,the actual data rate will vary on the quality of the copper
　wire and environment factors.
**Depending on what the DC/PoE Power Input and the length of coaxial
　cable are.
Ordering Information

LRP-101C-KIT

 Long Reach PoE over Coaxial Extender Kit (Coaxial, 1km)

Specificatii

Detalii

Brand

PLANET
Subcategorie

PoE Coaxial
Software

Fara management
Poe

POE
Tip echipament

INDUSTRIAL
Numar Porturi RJ45

1 x 10/100Mbps
