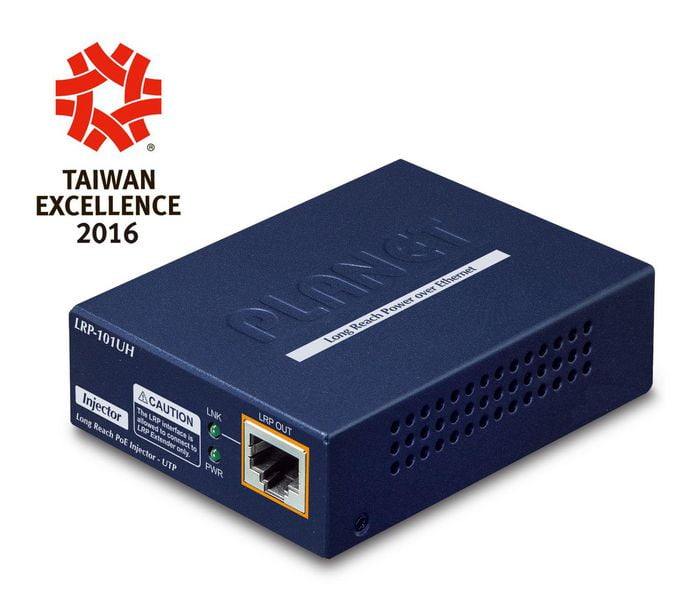

Planet 1-Port 10/100TX PoE PD + 1-Port UTP Long Reach PoE Injector
1-Port Long Reach POE over UTP Injector, -20 to 70 Degree C, up to 500 meter
678.39 lei (TVA inclus)
Disponibil stoc furnizor (livrare estimata 14 zile)
Disponibil stoc furnizor (livrare estimata 14 zile)
Pune o intrebare-
Ridicare din depozit Bucuresti
Gratuit
-
Livrare prin curier
Gratuit la comenzi peste 2500 de RON
Plata securizată:
Descriere
| Hardware Specifications | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ethernet Interface | LRP-101UH ■ Copper: 10/100BASE-TX RJ45, auto-negotiation/ auto-MDI/MDI-X ■ Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device) ■ PoE Input: Supports both mid-span and end-span PSE Input Range: 48~56V DC ■ Data Rate: 100/100Mbps ■ Cabling: Cat5e or above ■ Maximum Distance: 100m ■ Maximum Frame Size: 1522 bytes LRP-101UE |
||||||||||||||||||||||||||
| Long Reach PoE Interface | LRP-101UH ■ Connectivity: 1 x RJ45 connector, Long Reach PoE over UTP PSE ■ Power Output: 41~56V DC ■ Power Pin assignment: RJ45 Pin 1, 3, 5, 7: VCC+ RJ45 Pin 2, 4, 6, 8: VCC- ■ Cabling: Cat. 3, 4, 5, 5e UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) ■ Maximum Distance: Max. 100m with PoE+ output (328ft.) Max. 500m with PoE output (1,640ft.) Max. 1000m without PoE output (3,280ft.) ■ Long Reach Ethernet Standard: IEEE 1901 ■ Modulation Type: Wavelet-OFDM ■ Security: 128-bit AES encryption ■ Frequency Band: 2 ~ 28 MHz ■ Encryption: AES 128-bit LRP-101UE Performance**
|
||||||||||||||||||||||||||
| LED Indicators | LRP-101UH 4 x LEDs ■ PWR ■ LRP LNK ■ PoE IN ■ LNK/ACT LRP-101UE |
||||||||||||||||||||||||||
| ESD Protection | 4KV DC | ||||||||||||||||||||||||||
| EFT Protection | LRP-101UH ■ 2KV LRP-101UE |
||||||||||||||||||||||||||
| Enclosure | Metal case | ||||||||||||||||||||||||||
| Installation | Wall mount or DIN rail with optional kit | ||||||||||||||||||||||||||
| Dimensions (W x D x H) | 94 x 70.3 x 26.2 mm | ||||||||||||||||||||||||||
| Weight | LRP-101UH 193g LRP-101UE |
||||||||||||||||||||||||||
| Power Requirements | LRP-101UH ■ RJ45 PoE Input: 802.3at/af 48~56V DC ■ DC Input: 48~56V DC LRP-101UE |
||||||||||||||||||||||||||
| Standards Conformance | |||||||||||||||||||||||||||
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af Power over Ethernet (802.3at Type 1) IEEE 802.3at Power over Ethernet (802.3at Type 2) |
||||||||||||||||||||||||||
| Regulation Compliance | FCC Part 15 Class A, CE | ||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||
| Temperature | Operating: -20~70 degrees C Storage: -40~75 degrees C |
||||||||||||||||||||||||||
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
||||||||||||||||||||||||||
| Note | |||||||||||||||||||||||||||
| Note | *1.Upload: LRP-101UE to LRP-101UH,data stream. Download: LRP-101UH to LRP-101UE,data stream. 2.As there are various resistance values in the category of 5/5e cable, the actual data rate will vary on the quality of the copper wire and environment factors. **Depending on what the DC/PoE Power Input and the length of UTP cable are. |
||||||||||||||||||||||||||
| Ordering Information | |
|---|---|
LRP-101U-KIT |
Long Reach PoE over UTP Extender Kit (UTP, 500m) |
Specificatii
Detalii
| Brand |
PLANET |
|---|---|
| Subcategorie |
PoE Coaxial |
| Software |
Fara management |
| Poe |
POE |
| Tip echipament |
INDUSTRIAL |
| Numar Porturi RJ45 |
1 x 10/100Mbps |
