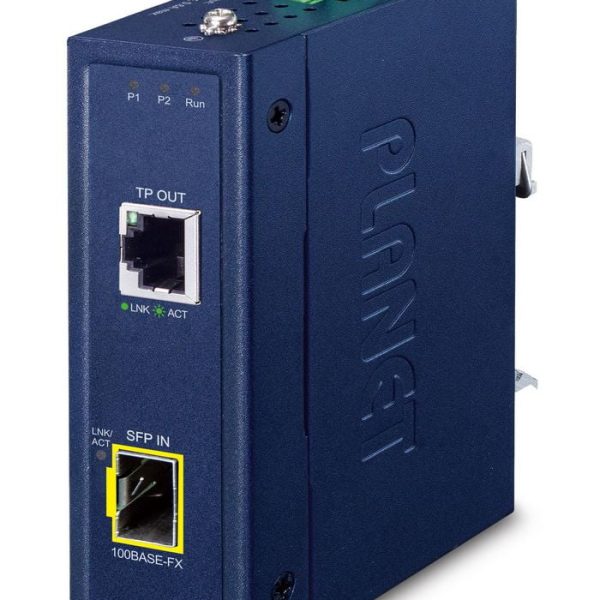

Planet IECC-210T

Name: Planet IECC-210T
Brand: PLANET
SKU: IECC-210T
Availability: BackOrder

SKU: IECC-210T

Industrial 1-Port 100TX + 1-Port 100FX SFP EtherCAT Media Converter (RJ45 In, SFP Out, -40~75 degrees C, Dual 9~48V DC, ?BECKHOFF EtherCAT conformance test tool verified)

479.84 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Pune o intrebare

Ridicare din depozit Bucuresti

Gratuit

Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Communication Interface
Copper	Port：1 x 100BASE-TX RJ45 port Distance： between Stations max. 100 m (100BASE-TX) Data Transfer Medium：Ethernet/EtherCAT cable (min. cat5), shielded
Filer	Port：1 x 100BASE-FX SFP port Distance between Stations：Depending on the ability of SFP module Data Transfer Medium：Depending on the ability of SFP module
EtherCAT
Protocol	EtherCAT
Power
Input Voltage Range	9~48V DC
Power Consumption	1.92W max.
Mechanical
Dimensions (W x D x H)	30 x 70 x 104mm
Weight	208g each for devices
Installation	DIN-rail and wall mounting
Case Material	IP30 metal
Environment
Operating Temperature	-40~75 degrees C
Storage Temperature	-40~85 degrees C
Relative Humidity	5~95% (non-condensing)
Standards Conformance
Regulatory Compliance	CE, FCC

Ordering Information
IECC-210-KIT	Industrial EtherCAT Media Converter Kit (IECC-210T + IECC-210R)
IECC-210T	Industrial EtherCAT Media Converter ( RJ45 IN, SFP OUT)
IECC-210R	Industrial EtherCAT Media Converter ( RJ45 OUT, SFP IN)
