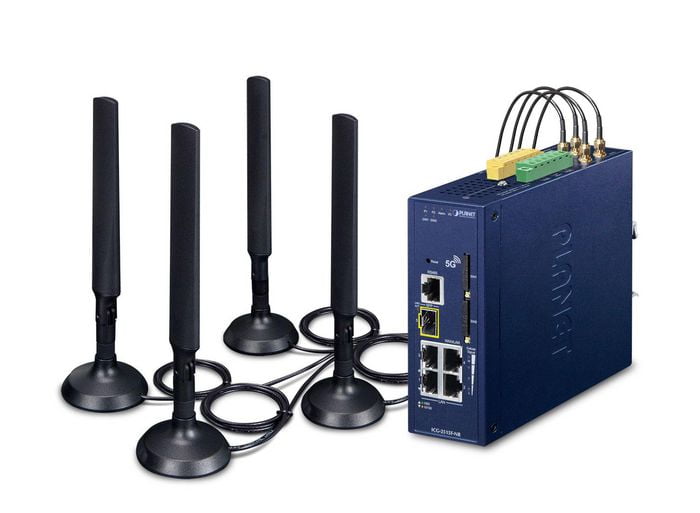

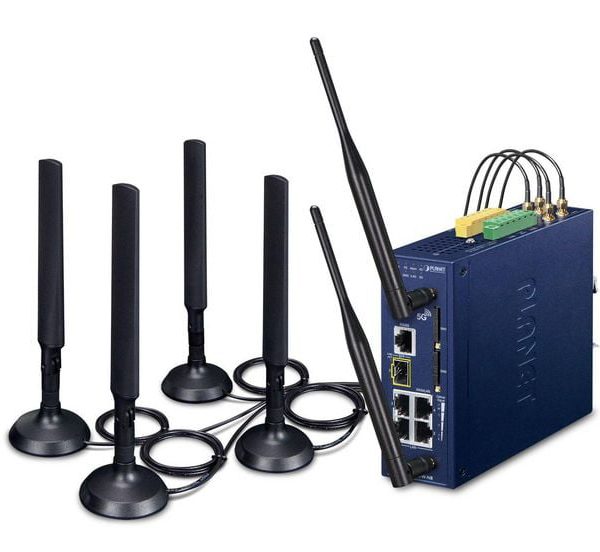

Planet Industrial 5G NR Cellular Gateway ICG-2515F-NR
Industrial 5G NR Cellular Gateway with 1-Port 1000X SFP (Sub-6 5G NR Global Band, compatible with 4G LTE, 2 SIM Card Slots, 4 10/100/1000T, 2 DI/DO, Dual DC 9~54V, -40~75 degrees C, SD-WAN automatically establishes a secure mesh VPN,Dual-WAN Failover and Load Balancing, High Availability, SSL VPN and robust hybrid VPN (IPSec/GRE/PPTP/L2TP), SPI Firewall, DoS Attack Prevention, Cyber Security, IPv6, SNMP, PLANET Easy-DDNS, ?AP Controller, Captive Portal, RADIUS)
4450.89 lei (TVA inclus)
Disponibil stoc furnizor (livrare estimata 14 zile)
Disponibil stoc furnizor (livrare estimata 14 zile)
Pune o intrebare-
Ridicare din depozit Bucuresti
Gratuit
-
Livrare prin curier
Gratuit la comenzi peste 2500 de RON
Plata securizată:
Descriere
| Hardware Specifications | |
|---|---|
| Ethernet | 4 10/100/1000BASE-T RJ45 Ethernet ports including 3 LAN ports (Ports 1 to 3) 1 LAN/WAN port (Port 4) |
| Fiber | 1 1000BASE-X SFP slot 1 LAN/WAN port (Port 5) |
| Serial Interface | RJ45 serial port |
| SIM Interface | 2 SIM card slots with mini SIM card tray |
| Cellular Antenna | 5 dBi external antennas with SMA connectors for 5G-NR |
| DI & DO Interfaces | 2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input Load to 24V DC, 10mA max. 2 Digital Output (DO): |
| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Enclosure | IP30 metal case |
| Installation | DIN rail, desktop, wall-mounting |
| LED Indicators | System: P1 (Green) P2 (Green) Alarm (Red) I/O (Red) Ethernet Interfaces (Ports 1-4): Fiber Interfaces (Port 5): Cellular SIM: Cellular signal: |
| Dimensions (W x D x H) | 50 x 135 x 135 mm |
| Weight | 0.8 kg |
| Power Requirements – DC | 9~54V DC, 1.5A |
| Power Consumption | 7.02W/ 23.94 BTU |
| Multi Band Supports | |
| 5G NR | n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
| LTE-FDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/ B32/B46/B66/B71 |
| LTE TDD | B34/B38/B39/B40/B41/B42/B43/B48 |
| WCDMA | B1/B2/B3/B4/B5/B8 |
| GNSS | GPS L1+L5 dual bands/GLONASS/BeiDou/Galileo/QZSS |
| Data Transmission Throughput | 2.4Gbps (DL)/500Mbps (UL) for NR 1Gbps (DL)/200Mbps (UL) for LTE 42Mbps (DL)/5.76Mbps (UL) for HSPA+ |
| Advanced Functions | |
| VPN | IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN) |
| VPN Tunnels | Max. 60 |
| VPN Throughput | Max. 60Mbps |
| Encryption Methods | DES, 3DES, AES or AES-128/192/256 encrypting |
| Authentication Methods | MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
| Management | |
| Basic Management Interfaces | Web browser SNMP v1, v2c PLANET Smart Discovery utility/UNI-NMS supported |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 |
| System Log | System Event Log |
| Others | Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics |
| Standards Conformance | |
| Regulatory Compliance | CE, FCC |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative humidity: 5 ~ 90% (non-condensing) |
| Ordering Information | |
|---|---|
ICG-2515F-NR |
Industrial 5G NR Cellular Gateway with 1-Port 1000X SFP |
Specificatii
Detalii
| Brand |
PLANET |
|---|---|
| Subcategorie |
LTE Gateway |
| Software |
Cu management |
| Poe |
NON POE |
| Tip echipament |
INDUSTRIAL |
| Numar Porturi RJ45 |
4 x 10/100/1000Mbps |
| Numar Porturi SFP |
1 x 1G |
| Cellular |
4G Dual SIM |
