QuCam for RUT240 with PSU + switch
Outdoor CCTV LTE PoE gateway with embedded PoE switch for CCTV cameras (RUT240 LTE router not included)
1419.51 lei (TVA inclus)
Disponibil stoc furnizor (livrare estimata 14 zile)
Disponibil stoc furnizor (livrare estimata 14 zile)
Pune o intrebare-
Ridicare din depozit Bucuresti
Gratuit
-
Livrare prin curier
Gratuit la comenzi peste 2500 de RON
Plata securizată:
Descriere
Features:
QuCam for RUT240 is a powerful outdoor industrial gateway for professional CCTV application with embedded PoE switch for up to 3x CCTV cameras and place to install Teltonika RUT240 (not included in gateway set). QuCam for RUT240 also has integrated omnidirectional LTE and Wi-Fi antennas. The mobile router delivers high performance for mission-critical cellular communication in harsh and hazardous environments where a wide operating temperature is required. Equipped with an external SIM holder.
Specification:
| LTE ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.694 – 0.96 GHz 1.7 – 2.2 GHz 2.5 – 2.7 GHz |
| Supported LTE/5G bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n95 |
| Gain | 0.694 – 0.96 GHz : 2 dBi 1.7 – 2.2 GHz : 2 dBi 2.5 – 2.7 GHz : 4 dBi |
| VSWR | <1.50, max <2.50 |
| Beamwidth | 360?/25? ?5? |
| Polarization | Vertical |
| Impedance | 50 ? |
| WI-FI ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 2.40 – 2.50 GHz |
| Gain | 3 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360?/25? ?5? |
| Polarization | Vertical |
| Impedance | 50 ? |
| PoE SWITCH SPECIFICATION | |
|---|---|
| LAN Ports | 6x RJ45 10/100Mbps |
| PoE Input | 1x Passive PoE input 44-60V (LAN_5) |
| PoE Output | 4x Active PoE 802.3af/at (LAN_1-4) 1x Passive PoE output 24V/7.2W (LAN_6) |
| PoE Output protection | LAN_1-4: 0.75A, LAN_5: 1.25A (separate resettable fuses) |
| Passive PoE mode | mode B (4,5+) (7,8-) |
| LEDs | 1x Power on (white, on board), 6x Link (orange, on port), 6x Transmit (green, on port) |
| Operating temperature | -10?C ? +40?C |
| Installation | 4x holes ?2.5mm |
| Dimensions | 73mm x 145mm x 17mm (WxLxH) |
| Weight | 69.5g |

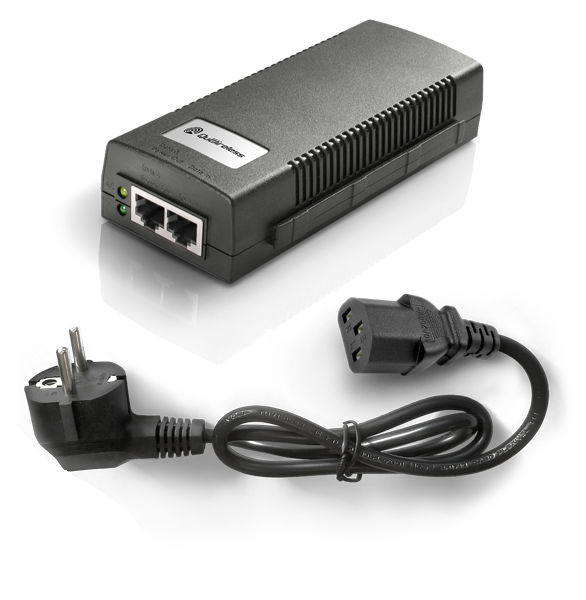

| POWER SUPPLY ELECTRICAL INPUT SPECIFICATION | |
|---|---|
| Input voltage | 110 ? 240VAC |
| Input frequency | 50 ? 60Hz |
| Input current | max. 2A RMS |
| Inrush current | max. 30A |
| AC leakage current | max. 3.5mA |
| Efficiency | min. 80% @ 100VAC, 84% @ 240VAC |
| Dielectric strength (primary to secondary) | 2kVAC/5mA/1s |
| Input socket | IEC320-C6 |
| AC power cord | 1.5m length, 3 pins EU or UK plug |
| POWER SUPPLY ELECTRICAL OUTPUT SPECIFICATION | |
|---|---|
| Output voltage | 56VDC |
| Min. load | 0A |
| Max. load | 1A |
| Peak load | 1.46A |
| Output power | 56W |
| Line regulation | ? 3% |
| Load regulation | ? 5% |
| Ripple | 560mVpp |
| Turn on delay time | max. 5s |
| Rise time | max. 40ms |
| Hold up time | min. 5ms |
| Overshoot | max. 15% |
| Protecions | Short circuit, over current (110 ? 200% of DC output) |
| Ethernet ports | Input (LAN): 1x RJ45 10/100Mbps Output (PoE): 1x RJ45 10/100Mbps |
| PoE mode | mode B: pins 4,5 + / pins 7,8 – |
| LEDs | Green: Power supply is on, Orange: PoE device connected |
| POWER SUPPLY MECHANICAL SPECIFICATION | |
|---|---|
| MTBF | 30,000 operating hours confidence-level at 80% load, 25?C |
| Operating temperature | -10?C ? +45?C |
| Storage temperature | -20?C ? +85?C |
| Humidity | 5% @ 0?C, 90% @ 40?C |
| Size | 146 x 59 x 30mm (LxWxH) |
| Safety | CE: EMC/LVD / FCC Part 15 Class B/ EN55022 Class B/ EN55024 |
