SERVER SUPERMICRO PIO-2124BT-HNTR-NODE

Compute Intensive Application
HPC, Data Center, Enterprise Server
Hyperscale, Hyperconverged

2U Rackmount Server
4x Hot-Pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:

• Dual AMD EPYC™ 7002/7003 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
• Up to 4TB Registered ECC DDR4 3200MHz SDRAM; 16x DIMM Slots
• 6x 2.5″ Hot-swap NVMe/SATA3 Drive Bays: Supports (4x NVMe (Gen3) + 2x SATA3, or 6x SATA3)
• 2x PCI-E 4.0 x16 (LP) Slots; 1x SIOM Card Support (Flexible Networking)
  Note: Must Bundle with Network Card
• 1x SATA/PCI-E 3.0 x4 M.2 Slot
• Integrated IPMI 2.0 + KVM with dedicated LAN
  Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
• Video via Aspeed AST2500 BMC
• 4x 80mm Heavy Duty Fans
• 2200W Redundant Power Supplies; Titanium Level (96%)
• 28.75″ Depth Rackmount Chassis

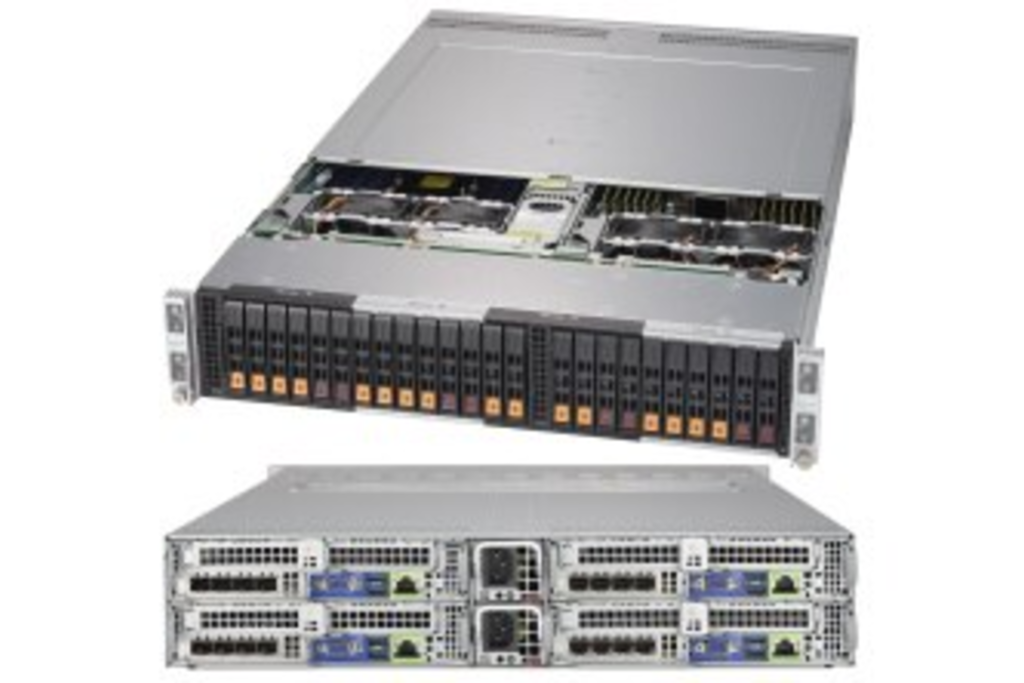

The Supermicro A+ Server 2124BT-HNTR is an 2U 4x nodes high performance rackmount server. Each nodes supports dual AMD EPYC™ 7002/7003 series processor, up to 4TB DDR4 ECC Registered Memory. The 2124BT-HNTR BigTwin system comes with 24x hot-swap 2.5″ NVMe/SATA3 drive bays, is equipped with 4x heavy duty 80mm PWM fans, and 2200W redundant titanium level power supply. The Supermicro Server 2124BT-HNTR BigTwin system is a multi-node server design optimized for hyper-converged infrastructure, flash storage with reduced data center TCO.
