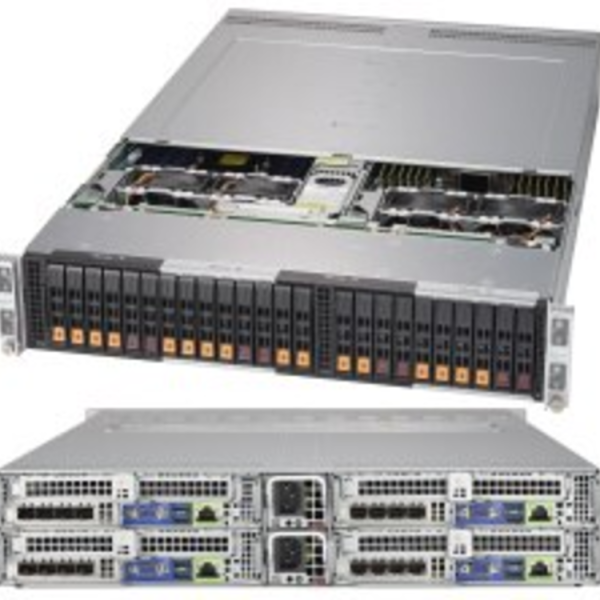

SERVER SUPERMICRO PIO-2124BT-HTR-NODE

Name: SERVER SUPERMICRO PIO-2124BT-HTR-NODE
Brand: SUPERMICRO
SKU: PIO-2124BT-HTR-NODE
Availability: BackOrder

SKU: PIO-2124BT-HTR-NODE

[NR]RMA node for AS -2124BT-HTR

5343.09 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Gratuit

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Specifications

Processor/Chipset (per Node)

CPU	Dual AMD EPYC™ 7003/7002 Series Processors (7003 Series Processor drop-in support requires BIOS version 2.0 or newer) Socket SP3 Support CPU TDP / cTDP up to 200W*
Cores	Up to 64 Cores


Note	* Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization

System Memory (per Node)

Memory Capacity	16 DIMM slots Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs 8-channel memory bus For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type	DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
Memory Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices (per Node)

Chipset	System on Chip
Storage	SATA3 (6Gbps) via AMD EPYC
Network	1 PCI-E 4.0 x16 SIOM LAN Networking Slot for flexible networking, see SIOM LAN options support matrix (Must bundle with at least one SIOM network card)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	ASPEED AST2500 BMC

Input / Output (per Node)

LAN	Provided via SIOM (optional) 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear)
Video	1 VGA port
DOM	1 SuperDOM (Disk on Module) port
Others	1 COM port (header) 1 TPM 2.0 header

Management (per Node)

Software	IPMI 2.0 KVM with dedicated LAN SSM, SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI / APM Power Management

Dimensions and Weight

Width	17.68″ (449mm)
Height	3.47″ (88mm)
Depth	28.75″ (730mm)
Package	24.33″ (618mm) H x 9.57″ (243mm) W x 45.08″ (1145mm) D
Weight	Gross Weight: 85 lbs (38.6 kg) Net Weight: 54.5 lbs (24.7 kg)
Available Colors	Black

Front Panel (per Node)

Buttons	Power On/Off button UID button
LEDs	Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED

Expansion Slots (per Node)

PCI-Express	2 PCI-E 4.0 (x16) Low-profile slots 1 SIOM card support (must bundle with network card)
M.2	Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2280, 22110 Key: M-key

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power	1200W/1800W/1980W/2090/2200W
Dimension (W x H x L)	45 x 40 x 480 mm
Input	1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 180-220Vac (for UL/cUL only) 2200W: 220-240Vac (for UL/cUL only) 2090W: 230-240Vdc (for CCC only)
+12V	Max: 100A / Min: 0A (100-127Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 174.17A / Min: 0A (230-240Vac) Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only) Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only) Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb	Max: 2.1A / Min: 0A
Output Type	Gold Finger
Certification	Titanium Level [ Test Report ]

Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 30°C (50°F ~ 86°F) * Support for operating above 30°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details. Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
