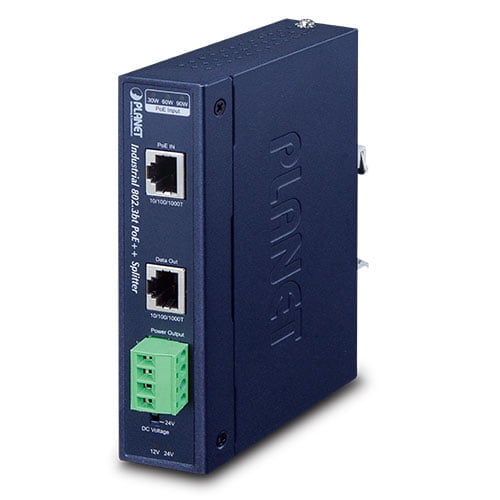

Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter POE-173S

Name: Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter POE-173S
Brand: PLANET
SKU: POE-173S
Availability: BackOrder

SKU: POE-173S

Single-Port 10/100/1000T 802.3bt PoE++ Splitter (12V/19/24V, 802.3bt type 4 PD, PoH compatible)

538.92 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Ridicare din depozit Bucuresti

Gratuit

Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Hardware Specifications
Interface	Ethernet 1 x 10/100/1000BASE-T RJ45, Ethernet data output port PoE in 1 x 10/100/1000BASE-T RJ45, PoE power input port Power socket 1 x DC plug-in
DIP Switch	12V/19V/24V DC output
DC Socket	DC receptacle 2.5mm
LED Indicators	PoE in: 30W (Green) 60W (Green) 90W+ (Green)
Data Rate	10/100/1000Mbps
Dimensions (W x D x H)	94 x 70.3 x 39.2 mm
Weight	265g
Installation	Desktop/wall mountable/DIN-rail (optional)
ESD Protection	4KV
EFT Protection	4KV
Enclosure	Metal case
Power Requirements	48~56V DC PoE
Unit Output Current (at 56VDC Input)	With 803.bt type 3 PoE++ input: 4.5A@12V DC 2.8A@19V DC 2.2A@24V DC With 803.bt type 4 PoE++ input: 5A@12V DC 3.15A@19V DC 2.5A@24V DC
Power Consumption	System on: 6 watts Ethernet full loading without DC output: 6.5 watts Ethernet full loading with maximum 12V DC, 5A output: 70 watts
Network Cable	803.bt PoE (60W+) 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3at PoE (30W) 2-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
Power over Ethernet
PoE Standard	802.3bt Type 3/4 Power over Ethernet 4-pair 802.3at PoE+ Compliant with voltage within 48-56V DC
Power Output	DC 12V/19V/24V by DIP switch control
PoE Power Supply Type	End-span + Mid-span End-span Mid-span
Power Pin Assignment	1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
Standards Conformance
Standards Compliance	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet Type 4
Regulatory Compliance	FCC, CE
Environment Specifications
Operating Temperature	0~ 50 degrees C
Storage Temperature	-10~ 70 degrees C
Humidity	5 ~ 95% (non-condensing)
Standard Accessories
Package Contents	POE-173S x 1 User’s manual x 1 15cm UTP straight network cable x 1 External female plug cables x 2: 5.5/2.5mm to 5.5/2.5mm 5.5/2.5mm to 5.5/2.1mm
