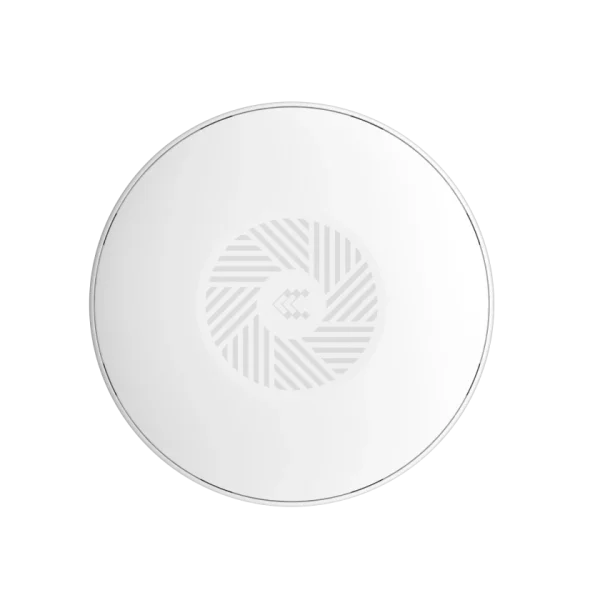

TELTONIKA WI-FI ACCESS POINT TAP200 cu PoE INJECTOR

802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)

WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

ESSID stealth mode (Hide SSID)

Up to 100 simultaneous connections

Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)

Allowlist, blocklist

Once scanned, a user will automatically enter your network without needing to input login information

Forward Wi-Fi hotspot landing page to a subsequent connected device

1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks

Real-time monitoring, wireless signal charts, traffic usage history

Port-based network access control client

SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator

Tag-based VLAN separation

HTTP(S), MQTT, Azure MQTT, Kinesis

Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature

Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log

Firmware update from server, automatic notification

SSH (v1, v2)

Receive email message status alerts of various services

Management API over HTTP/HTTPS

Teltonika Remote Management System (RMS)

MediaTek, Dual-Core, 880 MHz, MIPS 1004Kc

256 MB, DDR3

16MB, SPI NOR Flash

Update FW from file, check FW on server, configuration profiles, configuration backup

Update FW

Update FW/configuration for multiple devices at once

Update FW without losing current configuration

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

RutOS (OpenWrt based Linux OS)

Busybox shell, Lua, C, C++

SDK package with build environment provided

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

The Package Manager is a service used to install additional software on the device

RJ45 Socket

44.0 – 57.0 V

802.3af PoE Class 1

Idle: < 4 W / Max: < 5.5 W

1 x RJ45 port, 10/100/1000 Mbps

1 x Power LED (can be turned off from web-UI)

2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi

2 x 2400 – 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional

2 x 5150 – 5850 MHz, 50 Ω, VSWR <2, gain < 5.02 dBi, omnidirectional

Reboot/User default reset/Factory reset button

UV stabilized plastic

Ø 158 mm x 30 mm

190 g

AP mounting bracket (for ceiling mount)

-40 °C to 50 °C

10% to 90% non-condensing

IP30

CE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, RoHS, REACH, WEEE, SDPPI (POSTEL)

EN 55032:2015 + A11:2020

EN 55035:2017 + A11:2020

EN 61000-3-3:2013+A1:2019 + A2:2021

EN IEC 61000-3-2:2019 + A1:2021

EN 301 489-1 V2.2.3

EN 301 489-17 V3.2.4

EN 61000-4-2:2009

EN IEC 61000-4-3:2020

EN 61000-4-4:2012

EN 61000-4-5:2014 + A1:2017

EN 61000-4-6:2014

EN IEC 61000-4-11:2020

EN 300 328 V2.2.2

EN 300 893 V2.1.1

EN 300 440 V2.2.1

CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018
