8-Port 10Gbps 95W 802.3bt PoE++ Managed Injector Hub
3607.03 lei (TVA inclus)
24-Port 10Gbps 95W 802.3bt PoE++ Managed Injector Hub
7760.09 lei (TVA inclus)
Imagine cu titlu de prezentare
4
persoane au vazut acest produs!

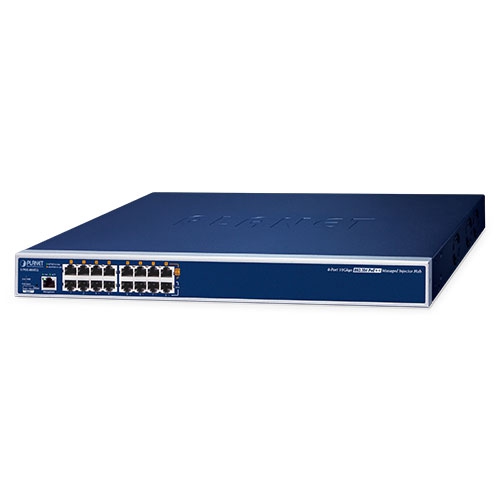

16-Port 10Gbps 95W 802.3bt PoE++ Managed Injector Hub
16-Port 10Gbps 95W 802.3bt PoE++ Managed Injector Hub (600W PoE budget, PoE Schedule, 10/100/1G/2.5G/5G/10Gbps data rate, IPv4/IPv6 HTTP/HTTPs Management, SNMPv3, Cloud-based CloudNMS, on-premise NMS controller and mobile app central management, MQTT and Cybersecurity feature)
4947.27 lei (TVA inclus)
Disponibil stoc furnizor (livrare estimata 14 zile)
Disponibil stoc furnizor (livrare estimata 14 zile)
Pune o intrebare-
Ridicare din depozit Bucuresti
Gratuit
-
Livrare prin curier
Gratuit la comenzi peste 2500 de RON
Plata securizată:
Descriere
| Hardware | |
|---|---|
| Interface | Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX “Data” Input Ports: 16 x RJ45 “Data + Power” Output Ports: 16 x RJ45 |
| Data Rate | 10/100/1000/2.5G/5G/10GBASE-T |
| Power Requirements | 100-240V AC, 50/60 Hz, 12A |
| Power Consumption | Max. 13.8 watts / 47 BTU (Power on without any connection) Max. 677 watts / 2309BTU (Full Loading) |
| Ventilation | Smart Fan x 3 |
| Dimensions (W x D x H) | 440 x 301 x 44mm |
| Weight | 4.4kg |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | System: SYS PWR x 1 (Green) PoE Alarm x 1 (Red) Fan Alarm x 2 (Red) Management port x 1: LNK/ACT (Green) Per PoE Port: 802.3bt PoE-in-use x 1 (Green) 802.3at/af PoE-in-use x1 (Amber) |
| Network Cable | 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft) 1G/2.5GBASE-T: 4-pair UTP Cat 5e/Cat 6/Cat 6A/Cat 7 up to 100m (328ft) 5GBASE-T: 4-pair UTP Cat 6/Cat 6A/Cat 7 up to 100m (328ft) 10GBASE-T: 4-pair UTP Cat 6A/Cat 7 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m) |
| Power over Ethernet | |
| PoE Standard | 802.3bt PoE++ PSE Backward compatible with IEEE 802.3at PoE PSE |
| PoE Power Supply Mode | 802.3bt End-span Mid-span |
| PoE Power Output | Per port 54V DC 802.3bt mode: maximum 95 watts End-span mode: maximum 36 watts Mid-span mode: maximum 36 watts |
| Power Pin Assignment | 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) |
| PoE PD Type | Standard Legacy Force |
| PoE Power Budget | 600 watts |
| Number of 95W 802.3bt Type-4 PDs | 6 |
| Number of 60W 802.3bt Type-3 PDs | 10 |
| Number of 802.3at PDs | 16 |
| PoE Management | Power limit by consumption and classification PoE function enable/disable Per port PoE function enable/disable Per port PoE power schedule Power feeding priority PD alive check PD classification detection Current per port usage and status Total power consumption |
| Security | |
| Firewall | SPI Firewall Protection |
| Authentication | Authentication Method Configuration |
| Filtering | MAC Filtering |
| Access Management | HTTP/HTTPS/SNMP |
| Certificates | System CA Certificate for HTTPS |
| Management Functions | |
| Management Interface | HTTP/HTTPs Web user interface |
| Secure Management Interface | TLSv1.2, TLSv1.3 |
| Management Feature | IPv4 and IPv6 dual stack management Web interface for remote management LLDP Link Layer Discovery Protocol (LLDP) PLANET DDNS and Easy DDNS Supports Network Time Protocol (NTP) System Maintenance Firmware upload via HTTP Configuration upload/download via HTTP Reboot button for system reboot Reset button for system reset to factory default PLANET Smart Discovery utility automatically finds PLANET devices on the network PLANET NMS system and CloudNMS for deployment management Remote RADIUS Server authentication Scheduled System Power Rebooting Network Diagnostic ICMPv6/ICMPv4 Remote Ping Trace Route |
| SNMP Management | SNMP v1, v2c and v3 for system status monitoring SNMP trap for alarm notification of events |
| Event Management | Local system event log Remote syslog |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz Gigabit 2.5G, 5GBASE-T Ethernet IEEE 802.3an Gigabit 10GBASE-T Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus RFC 768: UDP RFC 791: IP RFC 2068 HTTP RFC 1157: SNMP v1 RFC 1902: SNMP v2c RFC 2273: SNMPv3 RFC 5424: Syslog |
| Environments | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
Specificatii
Detalii
| Brand |
PLANET |
|---|---|
| Subcategorie |
PoE HUB |
| Software |
Cu management |
| Poe |
POE |
| Tip echipament |
OFFICE |
| Numar Porturi RJ45 |
16 x 10G |
