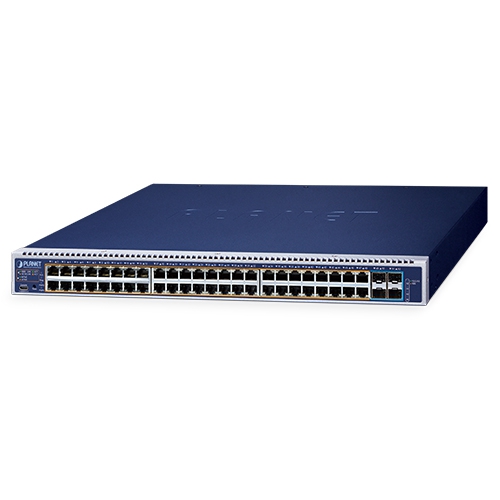

L3 48-Port 10/100/1000T 95W 802.3bt PoE + 4-Port 10G SFP+ Managed Switch with dual modular power supply slots 10490.19 lei (TVA inclus)
Back to products
16-Port 10Gbps 95W 802.3bt PoE++ Managed Injector Hub 4947.27 lei (TVA inclus)
PLANET

Imagine cu titlu de prezentare

3 persoane au vazut acest produs!
Comparați
Adaugă la lista de favorite

8-Port 10Gbps 95W 802.3bt PoE++ Managed Injector Hub

SKU: UPOE-800XG

8-Port 10Gbps 95W 802.3bt PoE++ Managed Injector Hub (400W PoE budget, PoE Schedule, 10/100/1G/2.5G/5G/10Gbps data rate, IPv4/IPv6 HTTP/HTTPs Management, SNMPv3, Cloud-based CloudNMS, on-premise NMS controller and mobile app central management, MQTT and Cybersecurity feature)

3607.03 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Disponibil stoc furnizor (livrare estimata 14 zile)

💡 Discounturi disponibile pentru categoria PLANET:
  • Comenzi peste 2500.00 lei → 3% reducere
  • Comenzi peste 5000.00 lei → 5% reducere
  • Comenzi peste 10000.00 lei → 10% reducere
Pune o intrebare
  • Ridicare din depozit Bucuresti

Gratuit

  • Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Hardware
Interface Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX
“Data” Input Ports: 8 x RJ45
“Data + Power” Output Ports: 8 x RJ45
Data Rate 10/100/1000/2.5G/5G/10GBASE-T
Power Requirements 100-240V AC, 50/60 Hz, 6.5A
Power Consumption Max. 11.5 watts / 39.2 BTU (Power on without any connection)
Max. 455 watts / 1552 BTU (Full Loading)
Ventilation Smart Fan x 3
Dimensions (W x D x H) 440 x 301 x 44mm
Weight 3.8kg
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
LED System: SYS PWR x 1 (Green)
PoE Alarm x 1 (Red)
Fan Alarm x 2 (Red)
Management port x 1: LNK/ACT (Green),
Per PoE Port: 802.3bt PoE-in-use x 1 (Green)
　　　　　　802.3at/af PoE-in-use x1 (Amber)
Network Cable 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)
100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)
1G/2.5GBASE-T: 4-pair UTP Cat 5e/Cat 6/Cat 6A/Cat 7 up to 100m (328ft)
5GBASE-T: 4-pair UTP Cat 6/Cat 6A/Cat 7 up to 100m (328ft)
10GBASE-T: 4-pair UTP Cat 6A/Cat 7 up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
Power over Ethernet
PoE Standard 802.3bt PoE++ PSE
Backward compatible with IEEE 802.3at PoE PSE
PoE Power Supply Mode 802.3bt
End-span
Mid-span
PoE Power Output Per port 54V DC
　802.3bt mode: maximum 95 watts
　End-span mode: maximum 36 watts
　Mid-span mode: maximum 36 watts
Power Pin Assignment 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
PoE PD Type Standard
Legacy
Force
PoE Power Budget 400 watts
Number of 95W 802.3bt Type-4 PDs 4
Number of 60W 802.3bt Type-3 PDs 6
Number of 802.3at PDs 8
PoE Management Power limit by consumption and classification
PoE function enable/disable
Per port PoE function enable/disable
Per port PoE power schedule
Power feeding priority
PD alive check
PD classification detection
Current per port usage and status
Total power consumption
Security
Firewall SPI Firewall Protection
Authentication Authentication Method Configuration
Filtering MAC Filtering
Access Management HTTP/HTTPS/SNMP
Certificates System CA Certificate for HTTPS
Management Functions
Management Interface HTTP/HTTPs Web user interface
Secure Management Interface TLSv1.2, TLSv1.3
Management Feature IPv4 and IPv6 dual stack management
Web interface for remote management
LLDP Link Layer Discovery Protocol (LLDP)
PLANET DDNS and Easy DDNS
Supports Network Time Protocol (NTP)
System Maintenance
　Firmware upload via HTTP
　Configuration upload/download via HTTP
　Reboot button for system reboot
　Reset button for system reset to factory default
PLANET Smart Discovery utility automatically finds PLANET devices on the network
PLANET NMS system and CloudNMS for deployment management
Remote RADIUS Server authentication
Scheduled System Power Rebooting
Network Diagnostic
　ICMPv6/ICMPv4 Remote Ping
　Trace Route
SNMP Management SNMP v1, v2c and v3 for system status monitoring
SNMP trap for alarm notification of events
Event Management Local system event log
Remote syslog
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bz Gigabit 2.5G, 5GBASE-T Ethernet
IEEE 802.3an Gigabit 10GBASE-T Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
RFC 768: UDP
RFC 791: IP
RFC 2068 HTTP
RFC 1157: SNMP v1
RFC 1902: SNMP v2c
RFC 2273: SNMPv3
RFC 5424: Syslog
Environments
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)

Specificatii

Detalii

Brand

PLANET
Subcategorie

PoE HUB
Software

Cu management
Poe

POE
Tip echipament

OFFICE
Numar Porturi RJ45

8 x 10G
