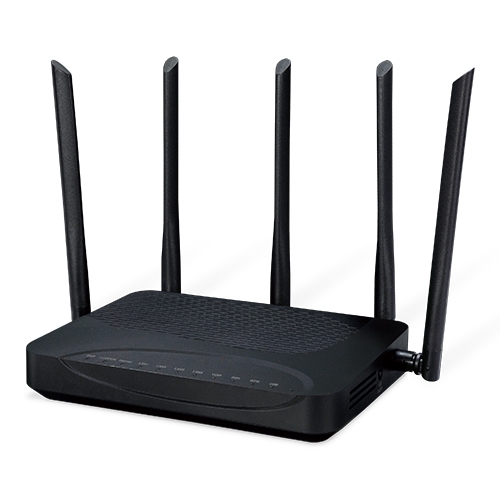

GPON HGU with 4-Port 10/100/1000T LAN, 3000Mbps 802.11AX Wireless, 1-Port FXS (One SC/UPC GPON port, Download 2.5Gbps/Upload 1.25Gbps, 2×2 MIMO, VLAN, SIP/H.248/T.38 FAX)

Name: GPON HGU with 4-Port 10/100/1000T LAN, 3000Mbps 802.11AX Wireless, 1-Port FXS (One SC/UPC GPON port, Download 2.5Gbps/Upload 1.25Gbps, 2x2 MIMO, VLAN, SIP/H.248/T.38 FAX)
Brand: PLANET
SKU: GPN-400AXV
Availability: BackOrder

SKU: GPN-400AXV

GPON HGU with 4-Port 10/100/1000T LAN, 3000Mbps 802.11AX Wireless, 1-Port FXS

330.92 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Pune o intrebare

Ridicare din depozit Bucuresti

Gratuit

Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Hardware Specifications
UNI port	4 x 10/100/1000BASE-T RJ45 copper Wi-Fi 6 external 5 antennas (2.4GHz x 2, 5GHz x 3) 1 x USB 2.0 host port 1 x RJ11 FXS port
PON port	Transmission rate: 2.5Gbps downlink / 1.25Gbps uplink Network Coverage Radius: 20 kilometers Receiver Sensitivity: ≤-28dBm Transmit Optical Power: 0.5~5dBm Optical interface type: SC/UPC
Button	1 x power ON/OFF button 1 x reset button (Press for about 15 seconds to reset the device to factory default.) 1 x WLAN enable/disable button 1 x WPS enable/disable button 1 x LED on/off button
Thermal Fan	Fanless
LED Indicators	PWR (Green) LOS/PON (Red)/(Green) Internet (Green) LAN1-LAN4 (Green) VoIP (Green) Wi-Fi (Green) WPS (Green) USB (Green)
Installation	Desktop installation or wall mounting
Power Requirements	12V DC, 1.5A max.
Power Consumption	18W max.
Weight	500g
Enclosure	Plastic
Wi-Fi	802.11b/g/n/ac/ax MIMO, with a maximum rate of 3000Mbps. multiple SSIDs and SSID encryption
Dimensions (WxDxH)	244.3 x 162.15 x 193 mm (including antennas)
Heat dissipation	Extended use (24 hours) does not result in performance degradation or damage due to device overheating or deformation.
Wireless Interface Specifications
Standard	IEEE 802.11ax 5GHz IEEE 802.11ax 2.4GHz IEEE 802.11a/b/g/n/ac compatible
Frequency Band	Simultaneous 2.4GHz and 5GHz
Modulation Type	802.11ax: OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM) 802.11n/g/a: OFDM 802.11b: DSSS (DBPSK / DQPSK / CCK)
Data Transmission Rates	2.4GHz up to 574Mbps 5GHz up to 2402Mbps @ 160MHz)
Channel	2.4GHz: FCC (America): 2.412–2.462GHz (11 Channels) ETSI (Europe): 2.4122.472GHz (13 Channels) 5.180~5.825GHz (up to 24 channels, depending on country)
Channel Width	802.11ax: 20/40/80/160MHz
Max. RF Power / EIRP	2.4GHz: < 20dBm 5GHz: < 23dBm (varies by region)
Wireless Management Features
Encryption Security	64/128-bit WEP, WPA, WPA2-PSK, WPA3-SAE
Wireless Security	SSID broadcast enable/disable Wireless MAC address filtering WPS (Wi-Fi Protected Setup) support Client isolation
Wireless Advanced	Transmit power adjustment Beacon interval configuration WMM (Wi-Fi Multimedia) support Band steering (2.4GHz/5GHz auto-switch) Wi-Fi schedule
Max. Supported Clients	Up to 128 wireless clients
Router Features
Data Forwarding	Routing Mode, Bridging Mode, and Routing + Bridging Hybrid Mode
DNS	DNS Relay
DHCP	DHCP server
VLAN	Port-based VLAN IEEE 802.1Q VLAN
Multicast	Supports IGMP Snooping Supports CTC-defined dynamic multicast Supports MLD Snooping Supports Full-Routing Multicast
QoS	Backpressure Flow Control (Half-Duplex) IEEE 802.3x Flow Control (Full-Duplex) Preventing Head-of-Line Blocking IEEE 802.1p, CoS 8 Priority Queues per Port WR, SP, and FIFO Port Rate Limiting
Reliability	Loop Detection Dying-Gasp Type B Dual Homing Protection
Security	Port MAC Address Limitation Port Protection Port Storm Suppression Supports firewall MAC/IP/Port/URL/Domain filtering Supports DDoS protection
Management Configuration	Web, TELNET, TR069, OMCI Software Upgrade through TFTP, WEB, TR069, and OLT
VoIP Protocols and Standard
Standard	T.38 (G.711 Fax pass-through)
Voice Codec	G.711A/G.711U/G.723/G.729
Voice Standard	VAD (Voice Activity Detection)
Standards Conformance
Standards	ITU-T G.987.3, G.988, G.989 GB/T 39577-2020 10Gbit/s Passive Optical Networks (XG-PON) IEEE 802.1Q, VLAN
Environment Specifications
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
