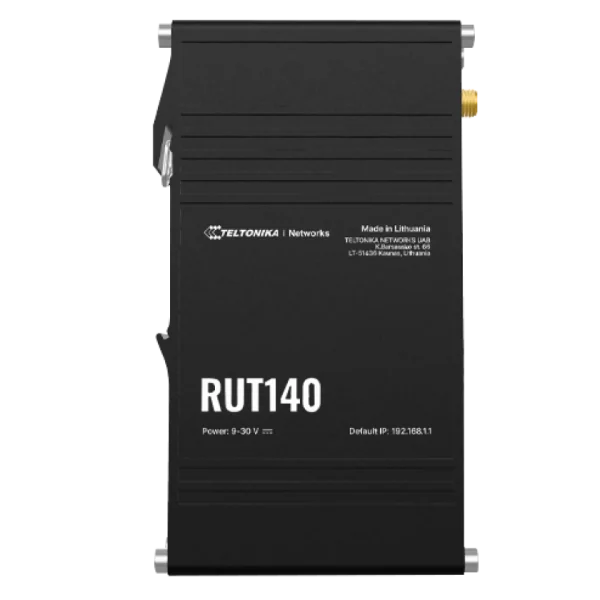

TELTONIKA ETHERNET ROUTER RUT140 321.23 lei (TVA inclus)
TELTONIKA

Imagine cu titlu de prezentare

2 persoane au vazut acest produs!
Comparați
Adaugă la lista de favorite

SWITCH TELTONIKA FARA MANAGEMENT TSW040

SKU: TSW040000000

INDUSTRIAL UNMANAGED SWITCH, Integrated DIN rail bracket, 8 x LAN POE ports 10/100 Mbps, total budget 240W, compliance with IEEE 802.3, IEEE 802.3u standards, auto MDI/MDIX crossover, 2 pin power, 7-57 VDC, or 44-57 VDC for PoE-out ***without power supply

Prețul inițial a fost: 273.41 lei.Prețul curent este: 260.04 lei. (TVA inclus)

În stoc (comanda rapida)

În stoc (comanda rapida)

💡 Discounturi disponibile pentru categoria TELTONIKA NETWORKS:
  • Comenzi peste 2500.00 lei → 1% reducere
  • Comenzi peste 5000.00 lei → 3% reducere
  • Comenzi peste 10000.00 lei → 5% reducere
Pune o intrebare
  • Ridicare din depozit Bucuresti

Gratuit

  • Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Ethernet

  • Ethernet

    8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

  • IEEE 802.3 series standards

    802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS

  • Profinet

    Profinet Class A conformance (available with optional order code)

POE OUT

  • PoE ports

    Port 1 – 8

  • PoE standards

    802.3af and 802.3at compliant PSE ports, over spare pairs – Mode B

  • PoE Max Power per Port (at PSE)

    30 W

  • Total PoE Power Budget (at PSE)

    240 W

Performance Specifications

  • Bandwidth (Non-blocking)

    20 Gbps

  • Packer buffer

    128 KB

  • MAC address table size

    2K entries

  • Jumbo frame support

    9216 bytes

Power

  • Connector

    2-pin industrial DC power socket

  • Input voltage range

    7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND

  • PoE-out input voltage range

    44 – 57 VDC

  • Power consumption

    Idle: 1 W / Max: 2 W / PoE Max: 246 W

Physical Interfaces

  • Ethernet

    8 x RJ45 ports, 10/100 Mbps

  • Status LEDs

    1 x Power LED, 16 x ETH status LEDs

  • Power

    1 x 2-pin industrial DC power socket

  • Other

    1 x Grounding screw

Physical Specification

  • Casing material

    Anodized aluminum housing and panels

  • Dimensions (W x H x D)

    113.1 x 41.2 x 74.6 mm

  • Mounting options

    Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

  • Weight

    280 g

Operating Environment

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    5% to 95% non-condensing

  • Ingress Protection Rating

    IP30







Specificatii

Detalii

Brand

TELTONIKA
Subcategorie

Switch
Tip echipament

INDUSTRIAL
Poe

POE
Numar porturi

8
Software

Fara management
