Industrial 8-Port 10/100/1000T Wall-mounted Gigabit PoE+ Switch WGS-818HP
926.58 lei (TVA inclus)

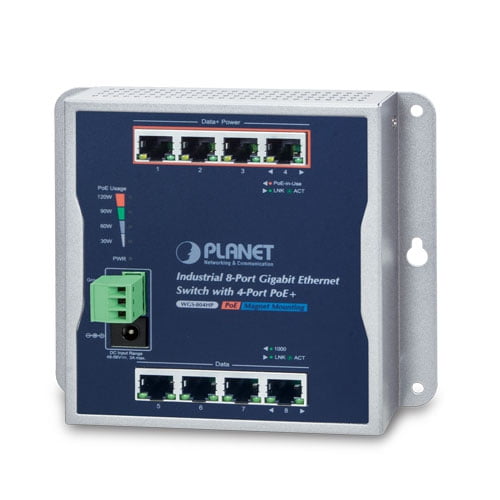

8-Port 10/100/1000T Wall Mounted Gigabit Ethernet Switch with 4-Port PoE+ WGS-804HP
711.48 lei (TVA inclus)
Imagine cu titlu de prezentare
5
persoane au vazut acest produs!
Industrial 8-Port 10/100/1000T Wall-mounted Gigabit Switch with 4-port PoE+ WGS-814HP
P30 Industrial 8-Port 10/100/1000T Wall-mount Gigabit Switch with 4-Port 802.3at PoE+? (60W PoE Budget, Standard/VLAN/Extend mode, fanless, -20 to 60 C),54V 72W AC power adapter included
645.29 lei (TVA inclus)
Disponibil stoc furnizor (livrare estimata 14 zile)
Disponibil stoc furnizor (livrare estimata 14 zile)
Pune o intrebare-
Ridicare din depozit Bucuresti
Gratuit
-
Livrare prin curier
Gratuit la comenzi peste 2500 de RON
Plata securizată:
Descriere
| Hardware Specifications | |
|---|---|
| Network Connector | 8-Port RJ45 for 10/100/1000BASE-T |
| PoE Inject Port | 4-Port with802.3at PoE+ injector function (Port-1 to Port-4) |
| Switch Architecture | Store and forward |
| MAC Address Table | 4K MAC address table with auto learning function |
| Switch Fabric | 16Gbps / non-blocking |
| Switch Throughput | 11.9Mpps@64Bytes |
| Jumbo Frame | 9Kbytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| LED Indicators | Power LED: Power (Green) PoE Power Usage LED: 15W, 30W, 45W, 60W (Amber) PoE Port: PoE-in-Use (Amber) LNK/ACT (Green) 10/100/1000BASE-T Port: LNK/ACT (Green) |
| ESD Protection | 4KV DC |
| DIP Switch | Selectable operation modes: ■ Standard: IEEE 802.3at PoE+ transmission distance of 100m ■ VLAN: Port-based VLAN ■ Extend: 25-watt PoE transmission distance of 250m at speed of 10Mbps |
| Connector | DC power jack with 2.0mm central pole |
| Power Requirements | 48~56V DC, 1.5A (max.) |
| Power Consumption | 70 watts / 239BTU |
| Enclosure | IP30 metal |
| Dimensions (W x D x H) | 148 x 24.2 x 134 mm |
| Weight | 472g |
| Installation | Fixed wall mounting, magnetic wall mounting and DIN-rail mounting |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3af Standard - Per port 48V~56V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard - Per port 50V~56V DC (depending on the power supply), max. 30 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 60 watts (depending on power input) |
| Max. Number of Class 2 PDs | 4 |
| Max. Number of Class 3 PDs | 4 |
| Max. Number of Class 4 PDs | 2 |
| Standard Conformance | |
| Standard Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet plus IEEE 802.3z Energy Efficient Ethernet |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
| Environment | |
| Operating | Temperature: -20 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Ordering Information | |
|---|---|
WGS-814HP |
Industrial 8-Port 10/100/1000T Wall-mounted Gigabit Ethernet Switch with 4-Port PoE+ |
Specificatii
Detalii
| Brand |
PLANET |
|---|---|
| Subcategorie |
Switch de retea |
| Software |
Fara management |
| Poe |
POE |
| Tip echipament |
INDUSTRIAL |
| Numar Porturi RJ45 |
8 x 10/100/1000Mbps |
