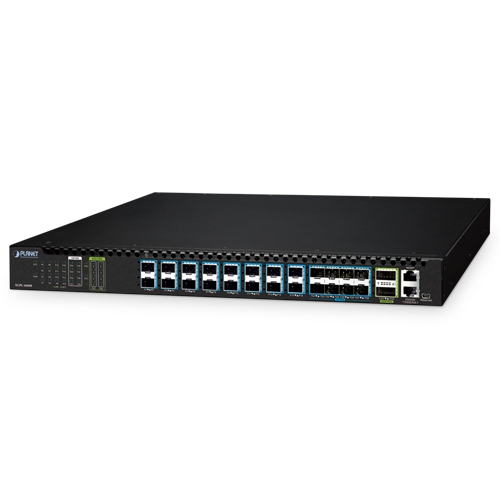

16-Port XGS-PON OLT with 8-Port 10G SFP+ + 2-Port 100G QSFP28 with optional Redundant Power (ITU-T G.984/G.987/G.9807/G.988, 1:256 for XGS-PON/1:128 for GPON splitting ratio, L3 Static Routing, Standard 100~240VAC single Power Supply, dual-AC or AC+DC supported) 24719.78 lei (TVA inclus)
PLANET

Imagine cu titlu de prezentare

3 persoane au vazut acest produs!
Comparați
Adaugă la lista de favorite

IP30 Compact size Industrial 2-Port 10G/2.5G/1G/100BASE-X SFP+ Media Converter (-40 to 75 degree C, dual 9~48V DC/24V AC, Auto-detection of SFP/SFP+ module speed, plug and play)

SKU: IXT-815AT

IP30 Compact size Industrial 2-Port 10G/2.5G/1G/100BASE-X SFP+ Media Converter

893.49 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Disponibil stoc furnizor (livrare estimata 14 zile)

💡 Discounturi disponibile pentru categoria PLANET:
  • Comenzi peste 2500.00 lei → 3% reducere
  • Comenzi peste 5000.00 lei → 5% reducere
  • Comenzi peste 10000.00 lei → 10% reducere
Pune o intrebare
  • Ridicare din depozit Bucuresti

Gratuit

  • Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Hardware Specifications
SFP+ Port Dual 10GBASE-X SFP+ interfaces
Backward compatible with 100BASE-FX, 1000BASE-X and
2500BASE-X SFP transceivers
Fiber Mode May vary on SFP+/SFP module
Fiber Port Type (connector) SFP, LC type
Fiber Maximum Distance May vary on SFP module
Network Cables May vary on SFP+ and SFP modules
Connector Removable 4-pin terminal block
Pin 1/2 for Power 1, Pin 3/4 for Power 2
Enclosure Metal case
LED System:
　PWR1, PWR2 (Green)
SFP+ Interfaces
　2.5Gbps/1Gbps LNK/ACT(Green)
　10Gbps /100Mbps LNK/ACT(Amber)
ESD Protection Contact ±6KV DC
Enclosure IP30 type metal case
Installation DIN-rail kit and wall-mount ear
Dimensions (WxDxH) 30 x 70 x 104mm
Weight 254g
Power Requirements DC 9~48V or 24V AC
Power Consumption Max. 1.17 watts / 3.99 BTU/h @9V DC input (Power on without any connection)
Max. 8.46 watts / 8.46 BTU/h @9V DC input (Full loading)
Layer 2 Features
Switch Architecture Store-and-Forward
Flow Control Half duplex: Back pressure eliminates packet loss
Full duplex: IEEE 802.3x pause frame support for efficient flow control
Fabric 40Gbps backbone to ensure high-speed data transmission
Forwarding Rate Non-blocking, full wire-speed forwarding rate
MAC Address Table 4K MAC address table, auto-aging
Jumbo Frame 12K
VLAN Support Transparent 802.1Q VLAN pass-through for seamless integration in
tagged network environments
Priority Switching 8-level QoS priority switching for traffic optimization
Supports 802.1p priority for efficient traffic management
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3z Gigabit SX/LX
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN pass-through
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~85 degrees C
Humidity Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)

Specificatii

Detalii

Brand

PLANET
Subcategorie

Media convertor
Software

Fara management
Poe

POE
Tip echipament

INDUSTRIAL
Numar Porturi SFP

2 x 1/2.5/10G
