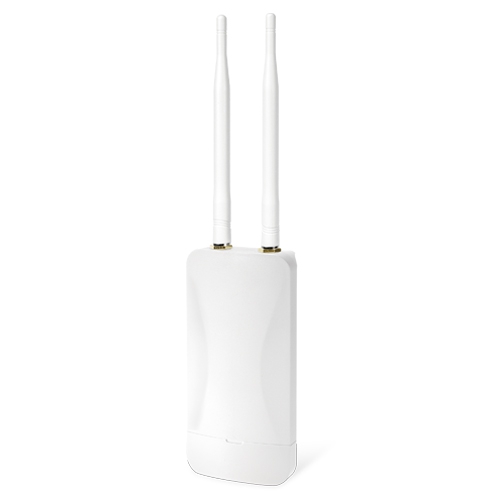

IP65 Wi-Fi 7 802.11be, Dual Band 3600Mbps Outdoor Wireless AP
678.39 lei (TVA inclus)
Imagine cu titlu de prezentare
4
persoane au vazut acest produs!
IP30, IPv6/IPv4, L2+ 16-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Wall-mount Managed Switch with LCD touch screen
IP30, IPv6/IPv4, L2+ 16-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Wall-mount Managed Switch with LCD touch screen (-20~70 degrees C, dual power input on 48-54VDC terminal block, DIDO, USB console, 720W max. PoE budget, 802.3bt/Legacy/Force modes, PoE PD alive check and schedule management, 250m Extend mode, 802.1Q VLAN, IGMP Snooping, TLSv1.2, SSHv2, SNMPv3 Cybersecurity, ACL, ERPS Ring, Cloud-based CloudNMS, on-premise NMS controller and mobile app central management, MQTT, supports 100FX, 1000X, 2.5G SFP and 10G SFP+)
4450.89 lei (TVA inclus)
Disponibil stoc furnizor (livrare estimata 14 zile)
Disponibil stoc furnizor (livrare estimata 14 zile)
Pune o intrebare-
Ridicare din depozit Bucuresti
Gratuit
-
Livrare prin curier
Gratuit la comenzi peste 2500 de RON
Plata securizată:
Descriere
| Hardware Specifications | |
|---|---|
| Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP+ Slots | 4 100/1G/2.5G/10GBASE-X SFP+ interfaces |
| PoE Injector Port | 16 ports with 802.3bt PoE++ injector function (Ports1 to 16) |
| Console | 1 x USB Type C serial port (115200, 8, N, 1) |
| LCD Monitor | 2.4-inch TFT color touchscreen |
| Connector | 4-pin terminal block for power input Pin 1/2 for Power 1 (Pin 1: V+ / Pin 2: V-) Pin 3/4 for Power 2 (Pin 3: V+ / Pin 4: V-) 2-pin terminal block for event alarm |
| Alarm | One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V DC |
| DI/DO | 2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input Load to 24V DC, 10mA max. 2 Digital Output (DO): Open collector to 24V DC, 100mA max. |
| Enclosure | IP30 aluminum case |
| Installation | Wall-mount |
| Dimensions (W x D x H) | 245 x 59.4 x 140 mm |
| Weight | 1793g |
| Power Requirements | 48~54V DC (>52V DC for PoE+ and PoE++ output recommended) Dual power input is required for maximum power loading Maximum current 17A |
| Power Consumption | System On Max. 7.1 watts/24.2 BTU @48V DC input Full Loading with PoE Function Max. 775 watts/2642.7 BTU @Dual 54V DC input (720-watt PoE budget) |
| ESD Protection | 6KV DC |
| LED Indicator | System: PWR 1(Green) PWR 2 (Green) Ring (Green) R.O. (Green) Per 10/100/1000T RJ45 PoE Port: 1000 LNK/ACT (Green) 10/100 LNK/ACT (Amber) bt PoE-in-Use (Green) at PoE-in-Use (Amber) Per SFP+ Interface: 1G/2.5G LNK/ACT (Green) 100/10G LNK/ACT (Amber) |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 112Gbps/non-blocking |
| Throughput (packet per second) | 83.3Mbps@ 64 bytes packet |
| Address Table | 32K entries, automatic source address learning and aging |
| Shared Data Buffer | 12Mbits |
| Flow Control | IEEE 802.3x pause frame for full duplex |
| Jumbo Frame | 12Kbytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3bt PoE++ PSE Backward compatible with IEEE 802.3at PoE PSE |
| PoE Power Supply Type | End-span Mid-span BT |
| PoE Power Output | Per port 54V DC 802.3bt mode, Ports 1 to 16: maximum 95 watts End-span mode: maximum 36 watts Mid-span mode: maximum 36 watts |
| Power Pin Assignment | 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) |
| PoE Power Budget | Single power input: 360W maximum (depending on power input) Dual power input: 720W maximum (depending on power input) ※Dual power input must be the same as DC voltage, like dual 54V |
| Number of 90W 802.3bt Type-4 PDs | 8 |
| Number of 60W 802.3bt Type-3 PDs | 12 |
| Number of 30W 802.3at Type-2 PDs | 16 |
| PoE Management Functions | |
| Enhanced PoE Mode | System PoE Admin Mode Consumption Mode/Allocation Mode Temperature Threshold Standard/Legacy/Force |
| Active PoE Device Live Detection | Yes |
| PoE Power Recycling | Yes, daily or predefined schedule |
| PoE Schedule | 4 schedule profiles |
| PoE Extended Mode | Yes, max. up to 250 meters |
| Layer 2 Function | |
| Port Mirroring | TX/RX/both Many-to-1 monitor Up to 4 sessions |
| VLAN | 802.1Q tagged VLAN 802.1ad Q-in-Q tunneling (VLAN stacking) Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 8 groups with 16 ports per trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping | IPv4 IGMP snooping v2, v3 IGMP querier Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD snooping v1, v2, up to 256 multicast groups |
| QoS | 8 mapping IDs to 8 level priority queues Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control |
| Ring | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms |
| Layer 3 Functions | |
| IP Interfaces | Max. 64 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 hardware static routing IPv6 hardware static routing |
| Security Functions | |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Max. 256 ACL entries |
| Port Security | Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication |
| MAC Security | IP-MAC port binding MAC filter Static MAC address, max. 256 static MAC entries |
| Enhanced Security | DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
| Management Functions | |
| Basic Management Interfaces | Console Web browser Telnet SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLS v1.3, SNMP v3 |
| System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS, NMSViewerPro and CloudNMS |
| Event Management | Remote/Local Syslog System log |
| ONVIF | ONVIF device discovery ONVIF device monitoring Floor map |
| LCD Management | IP address, VLAN and QoS configuration PoE management and status Port management and status, and SFP information Troubleshooting: cable diagnostic and remote IP ping Maintenance: reboot, factory default and save configuration |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB RFC 3621 Power over Ethernet MIB RFC 4836 LLDP MIB PLANET SNMP COMMON MANGEMENT Private MIB PLANET-DDMI-MIB PLANET-DIDO PLANET-Firmware-MIB PLANET-SYSUTIL-MIB PLANET-SMI PLANET-TC PLANET-GVRP-MIB PLANET-LACP-MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE802.3ae 10Gb/s Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus IEEE 802.3az for Energy-Efficient Ethernet RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU-T G.8032 ERPS Ring |
| Environment | |
| Operating Temperature | Temperature: -20 ~ 70 degrees C |
| Storage Temperature | Temperature: -20 ~ 70 degrees C |
| Humidity | Relative Humidity: 5 ~ 95% (non-condensing) |
Specificatii
Detalii
| Brand |
PLANET |
|---|---|
| Subcategorie |
Switch de retea |
| Software |
Cu management |
| Poe |
POE |
| Tip echipament |
OFFICE |
| Numar Porturi RJ45 |
16 x 10/100/1000Mbps |
| Numar porturi SFP+ |
4 x 10G |
