QuMax Omni for TRB500

Name: QuMax Omni for TRB500
Brand: QUWIRELESS
SKU: A500MO
Availability: BackOrder

SKU: A500MO

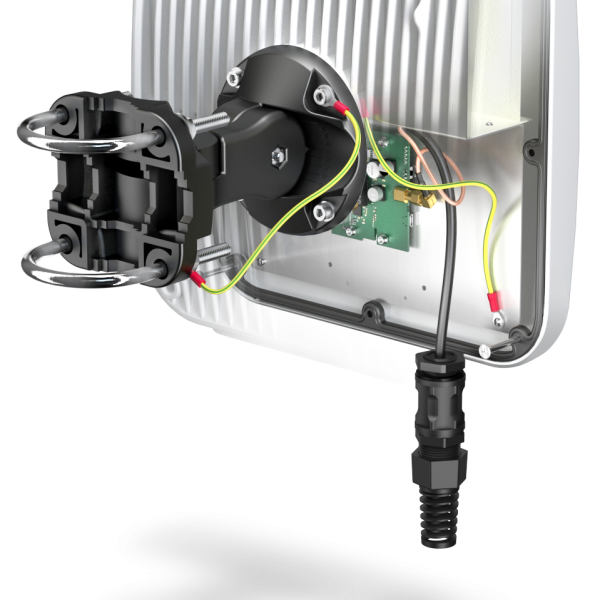

Integrated multi-band LTE & 5G omni antenna + place to install Teltonika TRB500 (All-in-one)

970.30 lei (TVA inclus)

Disponibil stoc furnizor (livrare estimata 14 zile)

Pune o intrebare

Ridicare din depozit Bucuresti

Gratuit

Livrare prin curier

Gratuit la comenzi peste 2500 de RON

Plata securizată:

Descriere

Features:

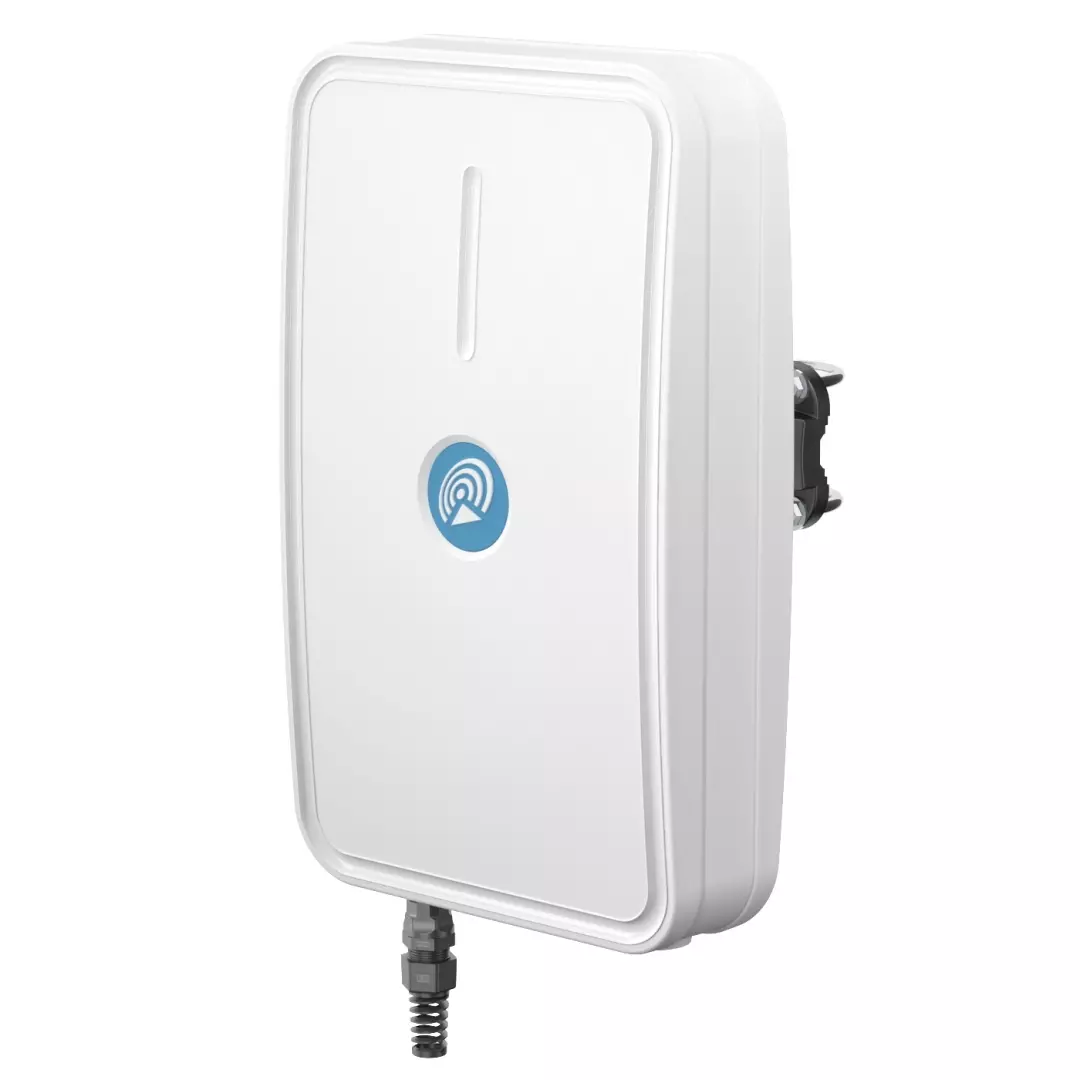

QuMax Omni is a 5 G omnidirectional MIMO 4 x 4 antenna for the Teltonika TRB 500 gateway The antenna covers a wide frequency range from 617 MHz (Band 71 to 3 8 GHz Additional router compartment inside the housing creates a variety of new outdoor (IP 67 scenarios It is recommended for moving applications, like trains, buses, yachts or campers, but also to improve signal quality in rural areas.

NOTE! The antenna doesn?t support B 32 band and n 77 (above 3800 MHz) band!

Specification:

LTE & 5G ANTENNA SPECIFICATION
Frequency	0.617 – 0.96 GHz 1.7 – 2.2 GHz 2.3 – 2.7 GHz 3.3 – 3.8 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 71, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95
Gain	0.617 – 0.96 GHz : 3 dBi 1.7 – 2.2 GHz : 3.5 dBi 2.3 – 2.7 GHz : 3.5 dBi 3.3 – 3.8 GHz : 4 dBi
VSWR	<1.80, max <2.00
Beamwidth	360?/35? ?5?
Polarization	Vertical
Impedance	50 ?

MECHANICAL SPECIFICATION
Materials	ABS, aluminum, PTFE, Fiberglass
Ingress protection	IP67
Connector type	RJ45
Dimensions	292.2 x 486.0 x 105.6 mm 11.5 x 19.13 x 4.16 inch
Weight	2.5 kg 5.51 lbs
Operating temperature	From -40?C to 75?C From -40?F to 167?F
