QuMax Omni for RUTX50
Integrated multi-band LTE & 5G omni antenna + Wi-Fi omni antenna + GPS + place to install Teltonika RUTX50 (All-in-one)
1.113,30 lei (TVA inclus)
Disponibil stoc furnizor (livrare estimata 14 zile)
Disponibil stoc furnizor (livrare estimata 14 zile)
-
Ridicare din depozit Bucuresti
Gratuit
-
Livrare prin curier
Gratuit la comenzi peste 2500 de RON
Plata securizată:
Descriere
Features:

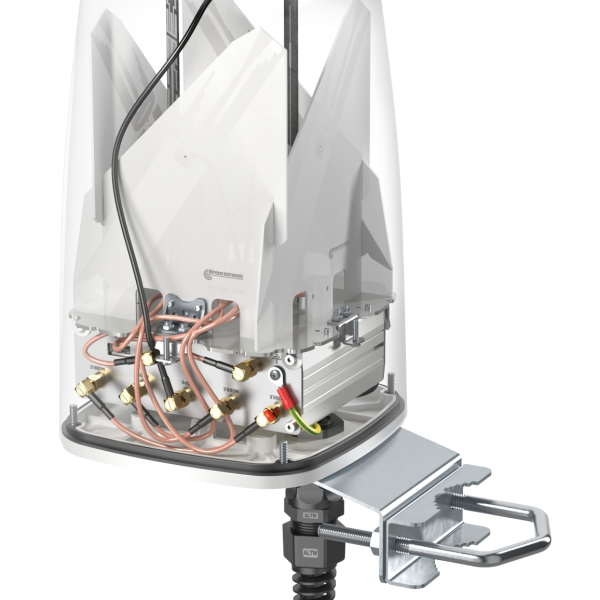

QuMax Omni is a 5G omnidirectional MIMO 4×4 antenna for the Teltonika RUTX50 router. The antenna covers a wide frequency range from 617MHz (Band71) to 3.8GHz. Apart from 5G, also Wi-Fi and GPS antennas are included, which means you get an all-in-one solution for your RUTX50. Additional router compartment inside the housing creates a variety of new outdoor (IP67) scenarios. It is recommended for moving applications, like trains, buses, yachts or campers, but also to improve signal quality in rural areas. NOTE! The antenna doesn?t support B 32 band and n 77 above 3800 MHz band!
Specification:
| LTE ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.617 – 0.96 GHz 1.7 – 2.2 GHz 2.3 – 2.7 GHz 3.3 – 3.8 GHz |
| Supported LTE/5G bands | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256 |
| Gain | 0.617 – 0.96 GHz : 3 dBi 1.7 – 2.2 GHz : 3.5 dBi 2.3 – 2.7 GHz : 3.5 dBi 3.3 – 3.8 GHz : 4 dBi |
| VSWR | <1.80, max <2.00 |
| Beamwidth | 360?/35? ?5? |
| Polarization | Vertical |
| Impedance | 50 ? |
| WI-FI ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 2.40 – 2.50 GHz 4.70 – 6.00 GHz |
| Gain | 2.40 – 2.50 GHz : 6 dBi 4.70 – 6.00 GHz : 7 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360?/25? ?5? |
| Polarization | Vertical |
| Impedance | 50 ? |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Ingress protection | IP67 |
| Connector type | RJ45 |
| Dimensions | 292.2 x 486.0 x 105.6 mm 11.5 x 19.13 x 4.16 inch |
| Weight | 2.5 kg 5.51 lbs |
| Operating temperature | From -40?C to 75?C From -40?F to 167?F |
Specificatii
Detalii
| Brand |
QUWIRELESS |
|---|---|
| Subcategorie |
Antene |
