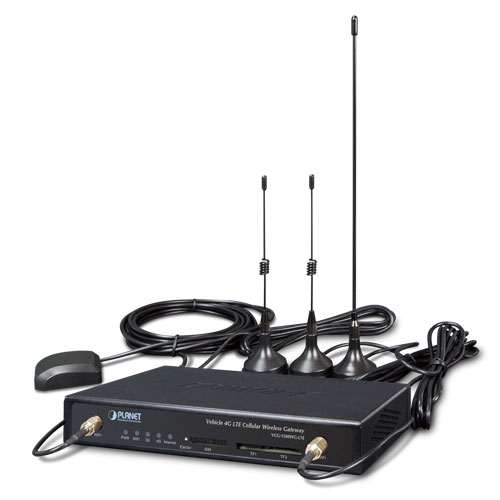

Vehicle 4G LTE Cellular Wireless Gateway with 5-Port 10/100TX VCG-1500WG-LTE-EU
1656.90 lei (TVA inclus)
Outdoor IP67 Solar LoRa Node Controller LN502
1763.79 lei (TVA inclus)
Imagine cu titlu de prezentare
3
persoane au vazut acest produs!

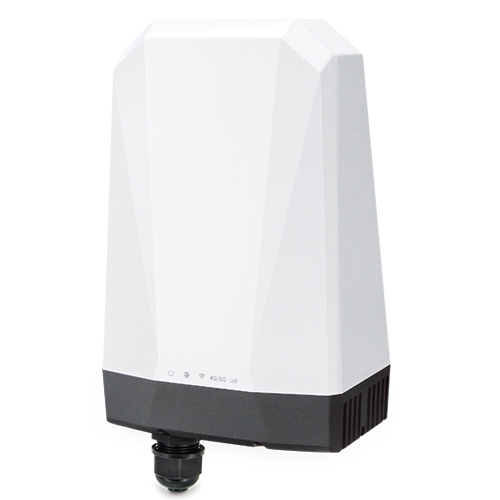

IP67 Industrial Outdoor LoRaWAN + 5G NR Cellular Gateway LCG-350W-NR-EU868
IP67 Industrial Outdoor LoRaWAN + 5G NR Cellular Gateway (Sub-6 5G NR EAU, EU868 Sub 1G, 802.11n 2.4GHz, 802.3at PoE PD and 100~240V AC, 1 Nano-SIM Card Slot, -40~75 degrees C, supports The Things Network & AWS network server, PLANET NMS-AIoT application server, MQTT Broker, SSL VPN and robust hybrid VPN (IPSec/GRE/PPTP/L2TP), Cyber Security, RADIUS, IPv6, SNMP, PLANET Easy-DDNS, and CloudViewerPro app, Region: Asia, Europe, Australia)
4970.69 lei (TVA inclus)
Disponibil stoc furnizor (livrare estimata 14 zile)
Disponibil stoc furnizor (livrare estimata 14 zile)
-
Ridicare din depozit Bucuresti
Gratuit
-
Livrare prin curier
Gratuit la comenzi peste 2500 de RON
Plata securizată:
Descriere
| Hardware Specifications | |
|---|---|
| Ethernet | 1 10/100BASE-T RJ-45 Ethernet |
| Cellular Antenna | 2 x 3 dBi internal antennas |
| SIM Interface | 1 Nano-SIM card slot |
| LoRa Antenna | 2 dBi internal antenna |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Enclosure | IP67 rating |
| Installation | Wall hanging, pole mounting |
| LED Indicators | PWR (Blue) Internet (Blue) LoRa (Blue) 4G/5G (Blue) Wi-Fi (Blue) |
| Dimensions (W x D x H) | 156 x 89 x 241 mm |
| Weight | 1045g |
| Power Requirements | 48V DC IN, 0.5A, IEEE 802.3at PoE+ or 100~277V AC IN, 0.5A |
| Power Consumption | Max. 2.4 watts/8.19 BTU (No Loading) Max. 3.3 watts/11.26 BTU (Full loading) |
| LoRaWAN | |
| Frequency Band | Suffixes 868: supported EU868, IN865, RU864 915: supported US915, AU915, KR920, AS923 |
| Receiving Sensitivity | -140dBm |
| Output Power | 26±1dBm |
| Multi Band Support | |
| 5G Sub6 Band | LCG-350W-NR-EU: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78 LCG-350W-NR-NA: n2/n5/n12/n14/n25/n30/n41/n48/n66/n70/n71/n77 |
| LTE Band | LCG-350W-NR-EU: LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE TDD: B38/B40/B41/B42/B43 LCG-350W-NR-NA: LTE FDD: B2/B4/B5/B12/B13/B29/B30/B66/B71 LTE TDD: B41/B46(LAA)/B48 |
| WCDMA | LCG-350W-NR-EU: B1/B5/B8 |
| GNSS | BDS/GPS/GLONASS/GALILEO/QZSS/SBAS |
| Data Transmission Throughput | 3.4Gbps (DL)/350Mbps (UL) for 5G NR 2Gbps (DL)/150Mbps (UL) for LTE Cat20 42Mbps (DL)/5.76Mbps (UL) for HSPA+ |
| Wireless | |
| Standard | IEEE 802.11b/g/n 2.4GHz |
| Band Mode | 2.4G Only |
| Frequency Range | 2.4GHz FCC: 2.412~2.462GHz ETSI: 2.412GHz~2.472GHz |
| Operating Channels | 2.4GHz FCC: 1~11 ETSI: 1~13 |
| Data Transmission Rates | Transmit: 150 Mbps* for 2.4 GHz Receive: 150 Mbps* for 2.4 GHz *The estimated transmission distance is based on the theory. The actual distance may vary in different environments. |
| Channel Width | 20/40MHz |
| Transmission Power | 11b: 26dBm ± 1dBm @11Mbps 11g: 24dBm ± 1.5dBm @54Mbps 11g/n: 20dBm ± 1.5dBm @MCS7, HT20 17dBm@MCS7,HT40 |
| Encryption Security | WEP (64/128-bit) encryption security WPA / WPA2 (TKIP/AES) WPA-PSK / WPA2-PSK (TKIP/AES) WPA3 personal 802.1x Authenticator |
| Wireless Advanced | Wi-Fi Multimedia (WMM) Auto channel selection Wireless output power management MAC address filtering |
| Max. SSID | 4 |
| Max. Wireless Clients | 64 (32 is suggested, depending on usage) |
| Security Service | |
| Firewall Security | Cybersecurity SSL (HTTPS) Inspection Stateful Packet Inspection (SPI) Blocks DoS/DDoS attack |
| NAT | Port forwarding UPnP |
| Content Filtering | MAC filtering IP filtering Web filtering |
| Management | MQTT Broker |
| Networking | |
| Operation Mode | Routing mode |
| Routing Protocol | Static Route, Dynamic Route (RIP), OSPF |
| Multicast | IGMP Proxy |
| Protocol | IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3, |
| Advanced Functions | |
| VPN Function | IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN) |
| VPN Tunnels | Max. 30 |
| VPN Throughput | Max. 50Mbps |
| Encryption Methods | DES, 3DES, AES or AES-128/192/256 encryption |
| Authentication Methods | MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
| Management | |
| Basic Management Interfaces | Web browser SNMP v1, v2c PLANET Smart Discovery utility and NMS controller supported PLANET CloudViewerPro app |
| Secure Management Interfaces | SSHv2, TLSv1.2/1.3, SNMP v3 |
| System Log | System Event Log |
| Others | Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics |
| Standards Conformance | |
| Regulatory Compliance | CE |
| Electrostatic Discharge (ESD) Immunity Test | IEC 61000-4-2, Level 4 |
| Surge Immunity Test | IEC 61000-4-5, Level 4 |
| Electrical Fast Transient (EFT) Burst Immunity Test | IEC 61000-4-4, Level 4 |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative humidity: 5 ~ 90% (non-condensing) |
| Ordering Information | |
|---|---|
LCG-350W-NR-EU868 |
Industrial Outdoor LoRaWAN 5G NR Cellular Gateway (Sub-6 5G NR EAU, EU868 Sub 1G) |
LCG-350W-NR-US868 |
Industrial Outdoor LoRaWAN 5G NR Cellular Gateway (Sub-6 5G NR US, EU868 Sub 1G) |
LCG-350W-NR-EU915 |
Industrial Outdoor LoRaWAN 5G NR Cellular Gateway (Sub-6 5G NR EAU, US915 Sub 1G) |
LCG-350W-NR-US915 |
Industrial Outdoor LoRaWAN 5G NR Cellular Gateway (Sub-6 5G NR US, US915 Sub 1G) |
Specificatii
Detalii
| Brand |
PLANET |
|---|---|
| Subcategorie |
LoRaWAN Gateway |
| Software |
Cu management |
| Poe |
POE |
| Tip echipament |
INDUSTRIAL |
| Numar Porturi RJ45 |
1 x 10/100Mbps |
| Wi-Fi |
2.4G |
| Cellular |
5G Mono SIM |
